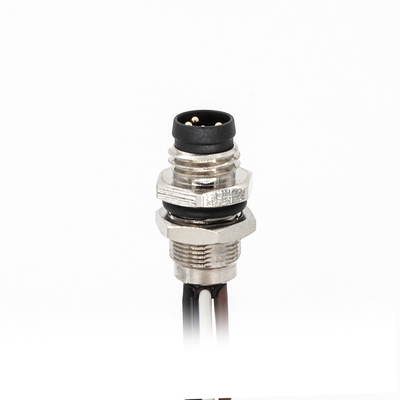

Flange M8 Male Connector 4 Pin Rear Mounting Straight Waterproof IP67

MOQ:	50 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

F0804M-0.5R/M8

Standard:

IEC 61076-2-104

Description:

M8 Panel Mount Connector

Contact Nut Material:

Brass,nickel-plated

Color:

Silver

Coding:

Cable Outlet:

Straight

Highlight:

Flange M8 Male Connector 4 Pin

Straight IP67 4 Pin Waterproof Connector

M8 IP67 4 Pin Connector

Product Description

Flange M8 Male Connector 4 Pin Rear Mounting Straight Waterproof IP67

Product Specifications

Standard	IEC 61076-2-104
Description	M8 panel mount connector
Contact Nut Material	Brass, nickel-plated
Color	Silver
Coding	A
Cable Outlet	Straight

M8 Flange Connector Male 4 Pin Rear Mounting Straight Waterproof IP67

M8 panel mount connectors with IP67 rating, available with 3,4,5,6,8 pins, offering three types of contact termination: PCB Mount, Solder Cup & Cable, and two mounting types: Front Mount and Back Mount. Complies with IEC 61076-2-101/104 standard and IP67 protection level.

What is an M8 Panel Mount Connector?

An M8 Panel Mount Connector with Wire is a circular industrial connector designed for fixed installation on panels (e.g., control cabinets, equipment enclosures) with pre-attached wiring for quick deployment.

Primary Function: Provides a secure panel-mounted interface with integrated cables for fast signal/power transmission.
Typical Applications: Industrial automation, sensor wiring, machine control panels.

Technical Data

Standard	IEC 61076-2-104
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Brass, nickel-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Configuration Details

Pin assignment	Mounting type	Coding	Rated current	Voltage	Cable outlet	Contacts termination	Model No.
	Rear mounting	A	3A	60V	Straight	0.5m Pre-wired	M0804M-0.5R/M8
