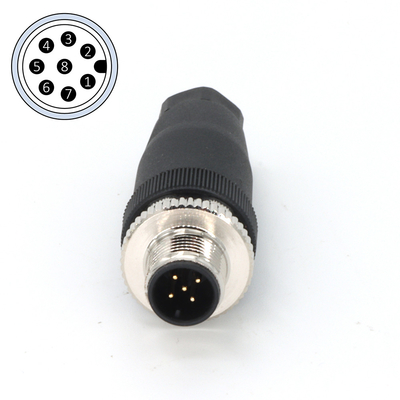

Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67
  • name
  • name

Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67

MOQ: 50 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
H1208M-7/H1208M-9
Product Name:
M12 Field Wirable Assembly Connector
Color:
Black
IP Rate:
IP67
Endurance(shell):
>100 Cycles
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Connector Type:
Screw Locking
Highlight:

A Coded M12 Connectors

,

Male M12 Connectors

,

M12 8 Pin Field Wireable IP67

Product Description
Field Wireable Assembly M12 Connector 8 Pin A Code Male IP67
Product Specifications
Product name M12 Field Wirable Assembly Connector
Color Black
IP rate IP67
Endurance (shell) >100 cycles
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Ambient temperature -25~+85℃
Connector type Screw Locking
Product Overview

The M12 straight field-wireable connector is a circular industrial connector designed for on-site cable termination, featuring a 12mm threaded locking mechanism and in-line (0°) cable exit.

Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67 0
Key Features
  • Field-Wireable - Supports screw, spring-cage, or IDC termination for flexible installation
  • Straight Cable Routing - Ideal for control panels and open enclosures where space allows linear connections
  • Robust Design - IP67/IP68-rated for dust/water resistance in harsh environments
  • Coding Options - A (sensors), B (PROFIBUS), or D (Ethernet) for proper signal matching
  • Durable Materials - Typically PBT plastic or metal (nickel-plated brass) construction
Applications
  • Sensor/actuator connections
  • Factory automation & PLC systems
  • Industrial Ethernet (Cat5e with D-coding)

Compared to angled versions, it requires more linear space but offers simpler cable management in unrestricted setups.

Technical Specifications
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment & Model Specifications
Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67 1
Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Screw connection A 1.5A 30V Straight 4-6mm(PG7) H1208F-7
          6-8mm(PG9) H1208F-9
Manufacturer Information
Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67 2 Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67 3 Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67 4 Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67 5 Male A Coded M12 Connectors 8 Pin Field Wireable Assembly IP67 6
