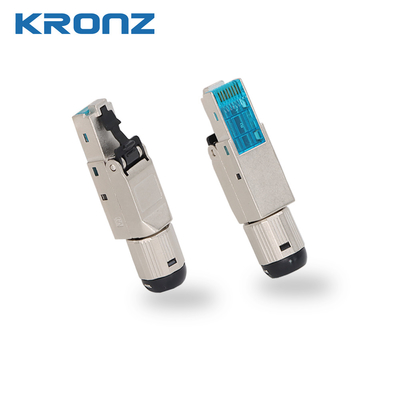

Cat.6 / 6a / 7 RJ45 Plug Connector Field Termination Plug Shielded Tolless

MOQ:	50
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

RJ45S/W806A

Product Name:

RJ45 Plug

Description:

Cat.6A Field Plug STP Tolless Type

Body:

Zinc-alloy Die-casting With Nickel-plated

Contact Bracket:

PC,94V-2

PCB Material:

UL 94V-0

PC UL 94V-2

Mating Cycles:

750 Min.

Insertion Force:

30N Max.

Highlight:

RJ45 Plug Connector

Cat6 Rj45 Connector

Cat 6a Rj45 Connector

Product Description

RJ45 Connector Field Termination Plug Shielded Toolless Cat.6/6a/7 RJ45 Plug

Product Specifications

Attribute	Value
Product Name	RJ45 Plug
Description	Cat.6A field plug STP toolless type
Body	Zinc-alloy die-casting with nickel-plated
Contact Bracket	PC,94V-2
PCB Material	UL 94V-0
Cap	PC UL 94V-2
Mating Cycles	750 min.
Insertion Force	30N Max.

Product Overview

This RJ45 connector series is specially designed for field assembly with solid installation cables. Featuring a built-in PCB layout and toolless design, it enables quick on-site installation in just 2 minutes without special tools. Suitable for 10 Gigabit Ethernet transmission, this cost-effective solution is popular for installation, repairs, and maintenance applications.

Key Features

Available in Cat.6/6A/7, fully shielded
Complies with ANSI/TIA/EIA 568C.2-1, ISO/IEC 11801, EN 50173 standards
Supports PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3b) up to 100 watts
Built-in PCB for excellent performance and low attenuation
Color-coded IDC strips according to EIA/TIA 568 A & B standards
360° shield coverage with screwable metal boot for cable fixation
Accepts 23-24 AWG stranded and solid network cables
Toolless design eliminates need for crimping tools
Reusable design ideal for DIY LAN cable connections
Tested and verified by FLUKE Channel Link test

Technical Specifications

Body	Zinc-alloy die-casting with Nickel-plated
Contact Bracket	PC,UL94V-2
PCB Material	FR-4, UL 94V-0
Contact Material	Phosphor bronze with Nickel-plated
Contact Finishing	15u gold-plated on contact surface
IDC Terminal	Phosphor bronze with Tin-plated
Cap	PC,UL94V-2, with 568A&B labeling sticker
Operating Temperature	-10°C to +60°C (ISO/IEC 11801, ANSI/TIA 568C.2)
Storage Temperature	-40°C to +60°C
Mating Cycles (with RJ45 jack)	750 min. (ISO/IEC 11801, IEC 60603-7-5)
Insertion Force	30N Max. (IEC 60603-7-5)
Retention strength	7.7 kg between jack and plug
Clamp	>200 acc. to ISO/IEC 11801, IEC 60603-7-5

Manufacturer Information
