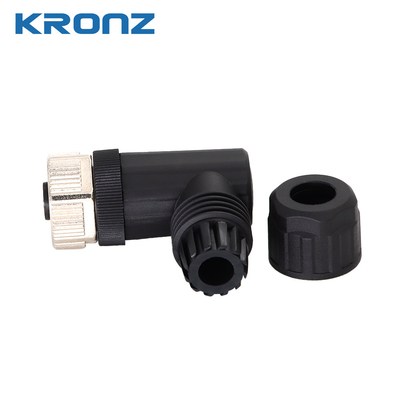

M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable
  • name
  • name
  • name

M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable

MOQ: 5
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
H1208FA-9/L
Insulation Resistance:
≥100MΩ
Contact Carrier Material:
ABS, PA, Black
Degree Of Protection:
IP67
Gender:
Female
Mating Cycles:
>100
Housing Material:
TPU, Black
Contact Resistance:
≤5mΩ
Standard:
IEC 61076-2-101
Highlight:

Field Wirable M12 Female Circular Connectors

,

8-pin M12 Female Circular Connectors

,

IP67 M12 Female Circular Connectors

Product Description
M12 Female Circular Connectors Angled IP67 Field Wirable Assembly 8-pin Connector
Product Attributes
Attribute Value
Insulation resistance ≥100MΩ
Contact carrier material ABS, PA, Black
Degree of protection IP67
Gender Female
Mating cycles >100
Housing material TPU, Black
Contact resistance ≤5mΩ
Standard IEC 61076-2-101
Product Description

The M12 Female Circular Connector, Angled, 8-Pin is a robust, field-wireable solution designed for quick and flexible installations in harsh industrial environments. With its right-angle design, this connector is ideal for space-limited applications, while the field-assembly capability allows on-site wiring without the need for special tools.

Built to IP67 protection standards, it offers complete sealing against dust and water, ensuring reliable performance in outdoor and heavy-duty applications. The 8-pin A-coded configuration supports signal and low-power connections, making it perfect for use with sensors, actuators, and industrial control systems.

Key Features
  • Connector Type: M12 Female Circular Connector
  • Pin Count: 8-pin, A-coded
  • Orientation: Right-angle (angled)
  • Assembly: Field-wireable - no special tooling required
  • Locking Mechanism: Screw-locking for secure, vibration-resistant connection
  • Ingress Protection: IP67 - waterproof and dustproof
  • Material: Rugged housing suitable for industrial use
  • Applications: Industrial automation, robotics, sensors, control systems, outdoor machinery
Technical Parameters
Coding A
Degree of protection IP67
Voltage 30V
Contact resistance ≤5mΩ
Mating cycles >100
Contact surface material Brass, Gold-plated
Cable outlet Angle
Connect Screw Connection
Clamp matrix material ABS, PBT/PA, Black
Ambient temperature -25~+85℃
Product Images
M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable 0 M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable 1 M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable 2 M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable 3 M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable 4
Applications

The KRONZ M12 Angled Cable Connector is a versatile product suitable for a wide range of applications due to its robust design and high-quality materials. This assembly connector is ideal for scenarios where reliable and efficient connectivity is essential in industrial environments.

Support and Services

Our M12 Connector product offers comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our dedicated support team is available to assist with any technical inquiries, troubleshooting, and product guidance.

M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable 5
Packing and Shipping

Our M12 Connector is carefully packaged to ensure its safety during shipping. Each connector is enclosed in protective plastic casing and placed in sturdy cardboard boxes. We use reliable courier services with clear labeling and tracking information.

M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable 6 M12 Female Angled 8-Pin A-Coded Connector IP67 Field-Wireable 7
Tags:

Aviation Plug Connectors,

M12 Wire Connector,

M12 Circular Connector
