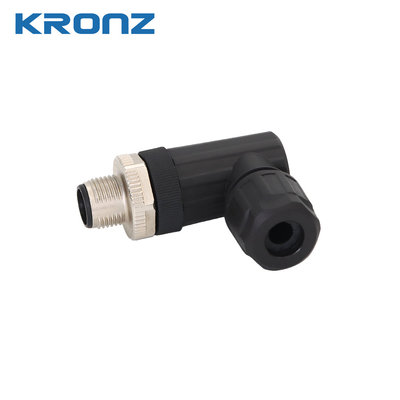

M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking
Products

M8 Connectors

M12 Connectors

RJ45 Connectors

7/8" Connectors

Industrial Ethernet Switches

Industrial Ultrasonic Sensors

Inductive Sensors

Industrial Power Supplies

I/O Module

RFID Recognition System

Sensor Distribution Box

Y Distributor

Photoelectric Sensors
Contact Us
sales02@kronz.cn
+8618924160375
WeChat
Contact Now
M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking
  • name
  • name
  • name

M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking

MOQ: 5
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
H1204MA-9/L
Clamp Matrix Material:
ABS, PBT/PA, Black
Contact Carrier Material:
ABS, PA, Black
Coding:
A
Insulation Resistance:
≥100MΩ
Degree Of Protection:
IP67
Housing Material:
TPU, Black
Connect:
Screw Connection
Cable Outlet Diameter:
4-8mm
Highlight:

Heavy Duty M12 Circular Connector

,

IEC 61076-2-101 M12 Circular Connector

,

4-pin M12 Circular Connector

Product Description
IEC 61076-2-101 Standard M12 Circular Connector 4-pin A Code For Heavy-Duty Applications
Product Attributes
Attribute Value
Clamp matrix material ABS, PBT/PA, Black
Contact carrier material ABS, PA, Black
Coding A
Insulation resistance ≥100MΩ
Degree of protection IP67
Housing material TPU, Black
Connect Screw Connection
Cable Outlet Diameter 4-8mm
Product Description
The M12 Circular Connector, 4-Pin A-Coded, is engineered to meet the IEC 61076-2-101 standard, ensuring global compatibility and reliability in demanding industrial environments. With its rugged circular design and secure A-coded 4-pin configuration, this connector provides robust and reliable connections for sensors, actuators, and field devices.
Built for heavy-duty applications, it features a vibration-resistant locking system and a durable housing that resists impact, oil, and harsh chemicals. The IP67 protection rating ensures complete sealing against dust and water ingress, making it ideal for automation systems, factory floors, and outdoor installations.
Key Features
  • Standard: Compliant with IEC 61076-2-101
  • Coding: A-code, 4-pin configuration
  • Design: Circular M12 connector
  • Connection: Secure screw-locking mechanism
  • Durability: Resistant to shock, vibration, and corrosion
  • Ingress Protection: IP67 - waterproof and dustproof
  • Applications: Industrial automation, sensors, actuators, robotics, heavy-duty machinery
  • Operating Conditions: Suitable for harsh and outdoor environments
Technical Parameters
Connect Screw Connection
Contact nut material Brass, Alloy
Degree of protection IP67
Pin 4
Ambient temperature -25~+85℃
Voltage 250V
Cable Outlet Diameter 4-8mm
Seal material NBR
Coding A
Rated current 4A
Product Images
M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking 0 M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking 1 M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking 2
Applications
KRONZ M12 Connectors are versatile and reliable components suitable for a wide range of industrial applications. With high-quality seal material (NBR) and CE certification, these connectors meet the demands of various industries including industrial automation, machinery, and instrumentation.
The connectors feature a gender-specific design for male connectors, ensuring compatibility and secure connections. With an operating temperature range of -25~+85℃, they perform reliably in both indoor and outdoor environments.
M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking 3 M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking 4
Product Technical Support
Our dedicated technical support team provides comprehensive assistance with product-related inquiries, troubleshooting, and guidance. We offer product training, installation support, and maintenance assistance to ensure optimal performance.
M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking 5
Packing and Shipping
Each M12 Connector is carefully packaged in a sturdy cardboard box with bubble wrap protection to prevent damage during transit. Orders are processed within 1-2 business days and shipped via reliable courier service with tracking.
M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking 6 M12 A-Coded 4-Pin Circular Connector IP67 Screw Locking 7
Tags:

Aviation Plug Connectors,

M12 Wire Connector,

M12 Circular Connector
