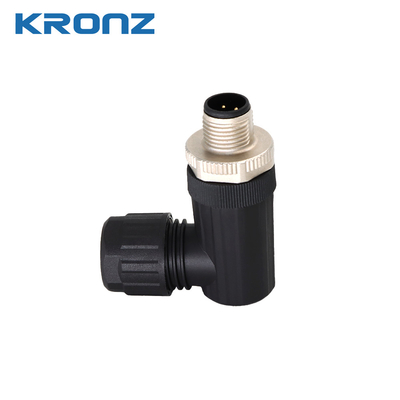

M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking
  • name
  • name
  • name

M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking

MOQ: 5
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
H1205MA-9/L
Connect:
Screw Connection
Mating Cycles:
>100
Contact Nut Material:
Brass, Alloy
Voltage:
60V
Cable Outlet Diameter:
4-8mm
Contact Surface Material:
Brass, Gold-plated
Standard:
IEC 61076-2-101
Pin:
5
Highlight:

Angled Screw Circular Connectors

,

IP67 Circular Connectors

,

5-pin Circular Connectors

Product Description
M12 Sensor Connector Angled Screw Waterproof IP67 Circular Connectors 5-pin A Code
Product Attributes
Attribute Value
Connect Screw Connection
Mating cycles >100
Contact nut material Brass, Alloy
Voltage 60V
Cable Outlet Diameter 4-8mm
Contact surface material Brass, Gold-plated
Standard IEC 61076-2-101
Pin 5
Product Description

The M12 5-Pin A-Coded Angled Sensor Connector is a compact, reliable circular connector designed for industrial automation and sensor applications. Featuring a 90-degree angled design, this connector is ideal for space-constrained installations. The screw-locking mechanism ensures secure and vibration-resistant connections, while the IP67 waterproof rating provides excellent protection against dust, water, and harsh environmental conditions.

Engineered with 5 gold-plated contacts for stable signal transmission, the connector complies with IEC 61076-2-101 standards and is fully compatible with A-coded M12 devices. The robust housing guarantees long-term durability in machinery, robotics, and field I/O connections.

Key Features
  • Type: M12 Circular Connector, Angled
  • Pins: 5-pin, A-Coded
  • Connection: Screw locking
  • Orientation: Right-angle (90°)
  • Protection: IP67 rated - waterproof and dust-tight
  • Material: Durable metal/plastic housing
  • Standards: IEC 61076-2-101 compliant
  • Applications: Industrial sensors, actuators, automation equipment, control systems
Technical Parameters
Insulation resistance ≥100MΩ
Connect Screw Connection
Seal material NBR
Contact resistance ≤5mΩ
Contact carrier material ABS, PA, Black
Standard IEC 61076-2-101
Mating cycles >100
Rated current 4A
Cable outlet Angle
Degree of protection IP67
Product Images
M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking 0 M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking 1 M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking 2
Applications

The M12 Connector is a versatile product suitable for various industrial applications including automation systems, sensor connections, and electrical installations. Its IP67 protection rating makes it ideal for harsh environments where dust and water resistance are required.

M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking 3 M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking 4
Support and Services

Our technical support team provides comprehensive assistance including product-related inquiries, troubleshooting, installation guidance, maintenance support, and product training to ensure optimal performance.

M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking 5
Packing and Shipping

Product Name: M12 Connector
Description: High-quality M12 connector for industrial use.
Package Contents: 1 M12 Connector
Shipping Method: Standard Shipping
Shipping Time: 3-5 business days

M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking 6 M12 5-Pin A-Coded Angled Sensor Connector IP67 Screw Locking 7
