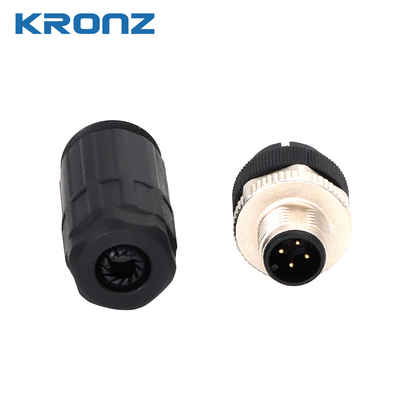

M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland
  • name
  • name
  • name

M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland

MOQ: 5
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
H1205M-9/L
Pollution Degree:
3
Mating Cycles:
>100
Standard:
IEC 61076-2-101
Cable Outlet Diameter:
4-8mm
Cable Outlet:
Straight
Pin:
5
Degree Of Protection:
IP67
Rated Current:
4A/2A
Highlight:

5 Pin Circular Connectors M12 Connector

,

IP67 M12 Connector

,

Aviation Plug M12 Connector

Product Description
M12 Connector with NBR Seal Material Aviation Plug PG9 5-pin Circular Connectors IP67
Product Attributes
Pollution degree 3
Mating cycles >100
Standard IEC 61076-2-101
Cable Outlet Diameter 4-8mm
Cable outlet Straight
Pin 5
Degree of protection IP67
Rated current 4A/2A
Product Description

The M12 5-Pin Circular Aviation Connector is designed for secure and reliable connections in industrial and automation systems. Featuring a durable PG9 cable gland and NBR (Nitrile Butadiene Rubber) sealing material, this connector offers excellent resistance to oils, chemicals, and environmental stress.

With a screw-locking mechanism and IP67 protection rating, it ensures a watertight and dustproof seal, making it ideal for demanding applications. The 5-pin configuration supports signal and low-power transmission, and the aviation plug design enables easy and stable installation in control equipment, sensors, and actuators.

Key Features
  • Connector Type: M12 Circular Aviation Plug
  • Pin Count: 5-pin
  • Seal Material: NBR (resistant to oil, chemicals, wear)
  • Cable Entry: PG9 gland
  • Locking Mechanism: Screw-lock
  • Protection Rating: IP67 - waterproof and dust-tight
  • Applications: Industrial automation, field devices, control cabinets, outdoor machinery
  • Standards Compliance: Compatible with IEC 61076-2-101
Technical Parameters
Contact resistance ≤5mΩ
Cable Outlet Diameter 4-8mm
Standard IEC 61076-2-101
Pin 5
Housing material TPU, Black
Coding A
Gender Male
Insulation resistance ≥100MΩ
Seal material NBR
Ambient temperature -25~+85℃
Product Images
M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland 0 M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland 1 M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland 2 M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland 3 M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland 4
Applications

The waterproof design makes this connector ideal for outdoor use and harsh environments, suitable for connecting outdoor lighting fixtures, security cameras, or industrial sensors.

In industrial automation settings, the rugged construction and high contact resistance ensure reliable signal transmission. The connector is commonly used where male connectors are required, with brass or alloy contact nuts providing durability and longevity.

Support and Services

Comprehensive technical support is available for installation, troubleshooting, and maintenance. Our expert team provides training programs and resources to help users maximize product capabilities, ensuring a seamless experience with the M12 Connector.

M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland 5
Packing and Shipping

Each connector is carefully packaged in sturdy boxes with protective padding to prevent damage during transit. We partner with reliable courier services for prompt delivery, providing tracking numbers for shipment monitoring.

M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland 6 M12 5-Pin Circular Connector with NBR Seal IP67 PG9 Gland 7
