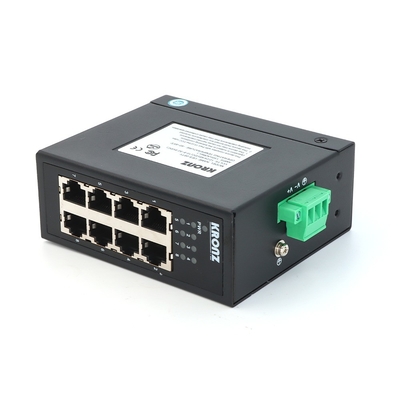

8 Port Unmanaged Industrial Ethernet Switches Full Duplex Half Duplex 100mbps

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Paper box packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

UES-08TY

Communication Mode:

Full-Duplex & Half-Duplex

Ports:

Transmission Rate:

10/100Mbps

Function:

Switch Capacity:

100mbps

Condition:

Ethernet Port:

8*RJ45 Ports

Power Voltage:

DC12-52V

Highlight:

Unmanaged Industrial Ethernet Switches

8 Port Industrial Ethernet Switches

8 Port Ethernet Switch 100mbps

Product Description

8 Port Unmanaged Industrial Ethernet Switches Full Duplex Half Duplex 100mbps

Product Attributes

Communication Mode	Full-Duplex & Half-Duplex
Ports	8
Transmission Rate	10/100Mbps
Function	POE
Switch Capacity	100mbps
Condition	New
Ethernet port	8*RJ45 Ports
Power voltage	DC12-52V

Product Description

UES-08TY is an unmanaged industrial Ethernet switch, supporting 8-port 10BaseT/100BaseTX. The UE-08TC switch supports a wide operating temperature range from -40°C to 85°C can satisfy most of various harsh environments, and can be installed in control cabinets in a space-saving way. Features such as DIN rail mounting, wide temperature operation, IP40 protection rating, and LED indicators make the UES-08TY a plug-and-play device, providing reliable and convenient solutions for customers in their network needs.

Product Features

Ensure reliable data transmission and long working life
Transfer speed automatically adjustable via Auto-Negotiation function
Half Duplex/Full Duplex, Auto-crossing
Store-and-forward switching mode, supporting multiple protocols
High quality and reliability, MTBF:300,000 hours
Din rail with IP40 metal mechanism

Technical Data

Products description	8-port unmanaged Industrial-grade Ethernet switch
Port description	8 x RJ45 female 8 pin,8-port 10/100Base-T(X) MDI/MDI-X auto-crossover,auto-negotiation
Network protocol	IEEE 802.3 10BaseT IEEE 802.3u 100Base TX/FX IEEE 802.3x - flow control
Environmental conditions	Operating temperature: -40~85°C(-40~185°F) Storage temperature: -40~75°C(-40~167°F) Relative humidity: 5%～95%(no condensation) MTBF: 300,000 hours
Power	Input voltage: DC12-52V Connection terminal: Removable screw terminals block Overload-current: Present Reverse-polarity protection: Present
Mechanical characteristics	Housing: Metal Protection rating: IP40 Mounting: DIN-rail,wall Cooling method: Natural cooling, fanless Weight: 0.58Kg Size: 100x 85x 40.2mm (L x W x H)
Standards	EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD) :±8kV contact discharge, ±12kV airdischarge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Data line : ±4kV CM//±2kV DM IEC(EN)61000-4-5(Surge) : Data line : ±4kV CM//±2kV DM IEC(EN)61000-4-6(Conducted Immunity) :3V(10kHz~150kHz), 10V(150kHz~80MHz) IEC(EN)61000-4-16(Common Mode Conducted) : 30V cont. 300V,1s IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Performance	Packet buffer menory: 448 Forwarding rate: 148810pps Forwarding mode: store-and-forward MAC address: 2K Bandwidth: 1.6G LED indicator: Power indicator: PWR, Interface: Link status

Mechanical Dimension Drawing
