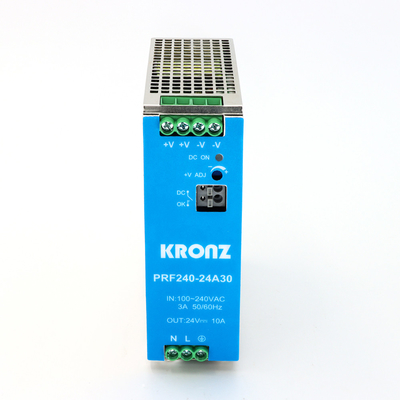

240W AC/DC Industrial Power Supplies Active PFC Rail Mounted

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Paper box packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

PRF240-12A30

Product Name:

240W Industrial Power Supply

Output Power:

Nomonal Output:

12V/16A

Output Voltage:

12.0-14.0

Max. Ca[acotove:

160,000 μF

Case Material:

Metal

Dimensions:

124 X 41 X 110 Mm

Cooling Method:

Free Air Convection

Highlight:

240W Industrial Power Supplies

Industrial Power Supplies Active PFC

240W Power Supply Rail Mounted

Product Description

240W AC/DC Industrial Power Supply with Active PFC

Product Specifications

Product Name	240W Industrial Power Supply
Output Power	192W
Nominal Output	12V/16A
Output Voltage Range	12.0-14.0V
Max. Capacitive Load	160,000 μF
Case Material	Metal
Dimensions	124 × 41 × 110 mm
Cooling Method	Free air convection

Product Description

The 240W AC/DC Industrial Power Supply provides a cost-effective, rail-mounted solution for industrial applications. This efficient, energy-saving power supply delivers high stability and anti-interference performance for industrial control equipment operating in harsh environments.

Compact in size and lightweight, this power supply features a space-saving design while maintaining safety and reliability. The metal casing ensures durability, and free air convection cooling eliminates the need for additional cooling components.

Key Features

Universal input voltage: 85-264VAC/120-370VDC
Accepts both AC and DC input (dual-use terminals)
Wide operating temperature range: -40℃ to +70℃
High efficiency (up to 92%) and reliability
Active PFC (Power Factor Correction)
150% peak power for 3 seconds continuous output
Comprehensive protection: short circuit, over-current, over-voltage, over-temperature
Suitable for high altitude applications up to 5000m
DC OK function with LED indicator
Indoor use only

Technical Specifications

Input Specifications

Item	Operating Conditions	Min.	Typ.	Max.	Unit
Input Voltage Range	Rated input (certified voltage)	100	--	240	VAC
AC input		85	--	264
DC input		120	--	370	VDC
Input Voltage Frequency	Rated AC input	50	--	60	Hz
AC input		47	--	63

Output Specifications

Item	Operating Conditions	Min.	Typ.	Max.	Unit
Output Voltage Accuracy	Full load range	12V	--	±2.0	%
Line Regulation	Rated load	--	±1.0	--
Load Regulation	0% - 100% load	--	±0.5	--

Physical Characteristics

Item	Details
Case Material	Metal (AL5052, SPCC)
Dimensions	124 × 41 × 110 mm
Weight	650g (Typ.)
Cooling Method	Free air convection

Safety & Compliance

Safety Standards: UL61010-1, UL61010-2-201, EN62368-1
Safety Class: CLASS I
MTBF: >300,000 hours @25℃
EMI: CISPR32/EN55032 CLASS B
EMS: Compliant with IEC/EN 61000-4 series
