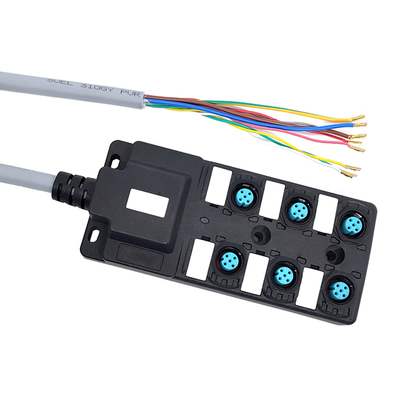

Single Channel Industrial M12 Distribution Box NPN 6 Port Junction Box

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Paper box packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

MB1206-1N-CV3M/HF

Product Name:

M12 6 Port Distribute Junction Box

Interface Type:

With Cable

Description:

Distribution Junction Box

Termination:

M12 Connectors

Connector Usage:

Sensor Distributer Box

Voltage - Rated:

24V DC/AC

Current Rating (Amps):

Size / Dimension:

17.25*5.8*1.83cm

Highlight:

Industrial M12 Distribution Box

Single Channel M12 Distribution Box

NPN 6 Port Junction Box

Product Description

Single Channel Industrial Distribution Box 6 Port NPN M12 Junction Boxes

Product Specifications

Attribute	Value
Product name	M12 6 port distribute junction box
Interface Type	With cable
Description	Distribution Junction Box
Termination	M12 connectors
Connector Usage	Sensor Distributer Box
Voltage - Rated	24V DC/AC
Current Rating (Amps)	4 A
Size / Dimension	17.255.81.83cm

Product Description

The M12 6-Port Junction Box with PVC Flexible Cable, NPN Single Channel with LED Display is designed for automated warehousing and intelligent logistics conveyor systems. This industrial junction box connects barcode scanners, RFID readers, photoelectric sensors, motor drivers, and other devices to enable material tracking, sorting, and transportation functions.

The junction box optimizes signal wiring on conveyor belts, reduces cable failures, and improves logistics efficiency.

Application Examples

Automated scanning and sorting systems in courier distribution centers
AGV (Automated Guided Vehicle) dispatching systems in automated warehouses
Monitoring systems for airport baggage conveyors

Technical Parameters

Order Model	MB1206-1N-CV3M/HF
Type	NPN
Sheath	PVC flexible wire
Rated Power Ue	24V DC/AC
Rated Working Voltage Ub	10...30 V DC
Current load capacity(A)	4 A
Total current(A)	6 A
Power on indicator light	Green LED indicator light
Shell protection grade	IP67 (when connected correctly)
Sheath color	GY
PVC flexible wire	310 / 30.5+60.3mm²

Company Profile
