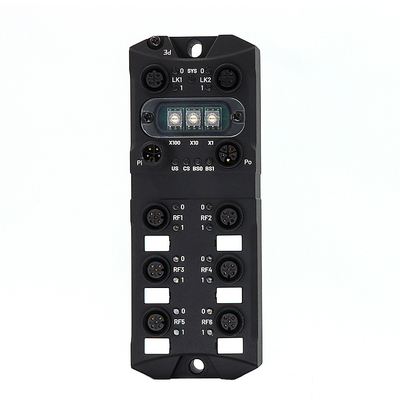

18 - 30V M12 Connector RFID Gateway Module EtherCat Industrial Communication

MOQ:	5 pieces
Price:	Negotiable
Standard Packaging:	Paper box packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

KRG60-EC

Description:

RFID Gateway Module

Industrial Communications

Output:

18-30VDC

Operating Temperature:

-30℃~+70℃

Interface:

RS-485

Application:

Industrial Communication

Current Consumption:

<80mA@24V

RFID Connector:

M12 5Pin A Coded Female

Highlight:

M12 RFID Gateway

RFID Gateway EtherCat

RFID Gateway Industrial Communication

Product Description

RFID Gateway Module EtherCat Industrial Communication 18-30V M12 Connector

Product Specifications

Attribute	Value
Description	RFID Gateway Module
Use	Industrial communications
Output	18-30VDC
Operating Temperature	-30℃~+70℃
Interface	RS-485
Application	Industrial Communication
Current consumption	<80mA@24V
RFID Connector	M12 5Pin A coded Female

Product Overview

An RFID gateway is a centralized device used to monitor and manage RFID-tagged items in high-traffic areas like doorways, loading docks, or warehouse zones. It includes multiple RFID readers and antennas to detect tags passing through checkpoints, collecting real-time data on location, direction, and movement history.
These gateways are essential for portal applications, automatically logging tagged items entering or exiting spaces to improve visibility, inventory accuracy, and supply chain automation. Integration with backend systems enables timely decision-making and asset control.

Key Features

High protection level with strong corrosion resistance for harsh industrial environments
Supports mainstream PLCs with mature function blocks/routines
Compatible with industrial communications including TCP/IP, Modbus TCP, PROFINET, EtherCat, and Ethernet/IP
High stability and reliability for 24/7 operation

Design	Dual network ports with cascading support and 6 RFID ports
Application Area	Harsh industrial environments requiring multiple RFID connections to bus networks

Electrical Interface Specifications

Ethernet Interface (LK1/LK2)

4Pin-M12-DCODED-Female connector pin assignment:

Pin	Assignment	Description
1	TD+	Tranceive Data+
2	RD+	Receive Data+
3	TD-	Tranceive Data-
4	RD-	Receive Data-

Power Supply Interface (Pi/Po)

5Pin-M12-LCODED-Male/Female connector pin assignment:

Pin	Assignment	Description
1	US (+24V)	System power supply positive
2	GNDL (0V)	Load power supply negative
3	GNDS (0V)	System power supply negative
4	UL (+24V)	Load power supply positive
5	PE	Protective earth

RS485 Interface

Pin	Assignment	Description
1	US (+24V)	System power supply positive
2	A (RS485)	RS485 A
3	GNDS (0V)	System power supply negative
4	B (RS485)	RS485 A
5	NC	Not connected

LED Status Indicators

System Status

NOTICE: SYS is the system status LED, US is the voltage status LED, and CS is the key chip status LED.

Name	Color	State	Description
SYS	Blue/Red	Off	The GM is power off
		Blue LED on	The GM has completed initialization and is operating normally
		Blue LED flashing	The GM is running at default settings
		Red LED on	The GM is in BOOT mode
		Red LED flashing	Software failure

RFID Status

NOTICE: RFID has 6 ports (RF1~RF6), indicated by two LEDs 0/1. 0 is RUN (running status), 1 is ERR (error status).

Name	Color	State	Description
0 (RUN)	Blue	Off	Not enabled
		On	Communication with the reader is normal
		Flashing	Tags exist in the recognition range
1 (ERR)	Red	Off	No abnormality
		On	The voltage is too low
		Flashing	Communication abnormality with the reader

Technical Specifications

Electrical Data

Parameter	Specification
Supply voltage	18-30VDC
Current consumption	<80mA@24V
Power protection	Overcurrent, reverse connection, surge, ESD, FFT protection
Power Connector	5Pin-M12-LCODED-Male (PI) 5Pin-M12-LCODED-female(PO)
Bus	EtherCAT
Communication	Dual network ports with integrated switching function, compliant with IEE802.3 standard, 10/100M adaptive
Bus Transmission distance	Cat 5e and above shielded twisted pair, <100m
Network Connector	4Pin-M12-DCODED-M12-Female
RFID port number	6
RFID communication interface	RS-485
RFID port Transmission distance	Shielded twisted pair, <50m
RFID connector	5Pin-M12-ACODED-Female

Mechanical Specifications

Parameter	Specification
Housing Material	Aluminum Alloy
Housing color	Black
Weight	About 400g
Dimensions	167.92x62.92x31.90mm
Type of mounting	4 X M6 screws (length ≥20mm)
Grounding	1 X M3 screws (Grounding ring inner diameter >3mm, outer diameter <8mm)

Environmental Specifications

Parameter	Specification
Operation temperature	-30℃~+70℃
Storage temperature	-40℃~+85℃
Degree of protection	IP67 (EN 60529)
Shock resistance	7M2, 500 m/s² (EN 60721-3-7)
Vibration resistance	7M2, 200 m/s² (EN 60721-3-7)

Certifications

CE, FCC, RoHS, WEEE
