7/8" Field Wireable Connector 4 Pin A Code Male Screw Locking

Products

Photoelectric Sensors

sales02@kronz.cn

+8618924160375

Contact Now

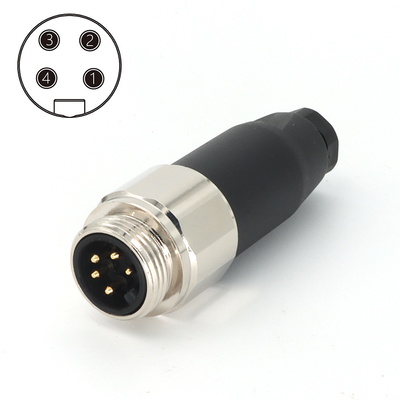

7/8" Field Wireable Connector 4 Pin A Code Male Screw Locking

MOQ:	50 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

H7804M-9/R

Product Name:

7/8" Field Wirable Assembly Connector

Contact Nut Material:

Zinc Alloy, Nickle-plated

Thread Type:

7/8”-16UN

Endurance(shell):

>100 Cycles

Insulation Resistance:

≥ 100MΩ

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Connector Type:

Screw Locking

Highlight:

Field Wireable Assembly 7/8" Connector

7/8" Connector 4 Pin Male

A Code 7/8" 4 Pin Connector

Product Description

7/8" Field Wireable Assembly Connector 4 Pin A Code Male

Product Overview

This 7/8" 4-Pin Male Field-Wireable Connector is a rugged, industry-standard solution for power and signal connections in harsh industrial environments. Featuring A-coding for signal wiring and a screw-locking mechanism, it enables secure, vibration-resistant connections. The field-wireable design allows easy, tool-based on-site installation without the need for soldering—ideal for automation, sensor, and control applications.

Key Features

Connector Type: 7/8" Circular Connector - Male, 4-Pin
Coding: A-Code (commonly used for DC power or signal)
Connection Type: Screw terminals - field wireable, no soldering required
Locking Mechanism: Threaded screw coupling for secure mating
Rated Voltage: Up to 300V AC/DC
Rated Current: Up to 9A (varies by configuration)
Ingress Protection: IP67 (waterproof and dust-tight when mated)
Housing Material: Industrial-grade thermoplastic or metal (model dependent)
Cable Entry Range: Typically 6-12 mm
Wire Gauge Support: AWG 18-14 (0.75-2.5 mm²)
Operating Temperature: -25°C to +85°C
Standards Compliance: Compliant with IEC 61076-2-101 (where applicable)

Technical Specifications

Attribute	Value
Product name	7/8" Field Wirable Assembly Connector
Contact nut material	Zinc alloy, nickle-plated
Thread type	7/8"-16UN
Endurance(shell)	>100 cycles
Insulation Resistance	≥ 100MΩ
Contact resistance	≤ 5mΩ
Ambient temperature	-25~+85℃
Connector type	Screw Locking

Detailed Technical Data

Thread type	7/8"-16UN
Contact nut material	Zinc alloy, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Assignment

Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
Screw connection	A	8A	600V	Straight	6-8mm	H7804M-9/R

Product Images

Product Dimension Drawing

Pin Assignment Diagram
