IP67 7/8" Female Connector 4 Pin Field Wireable Assembly Connectors

MOQ: 50 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
H7804F-9/R
Description:
7/8" Field-wireable Assembly Connector
Contact Nut Material:
Zinc Alloy, Nickle-plated
Contact Carrier Material:
PA, Black
Seal Material:
FPM/FKM
Ambient Temperature:
-25~+85℃
Connector Type:
Screw Locking
Housing Material:
PBT/PA, Black
Degree Of Protection:
IP67
Highlight:

IP67 7/8" Female Connector

,

7/8" Female Connector 4 Pin

,

IP67 Field Wireable Connectors

Product Description
7/8" Connector Field-wireable Assembly Connectors 4 Pin Female 7/8"-16UN
Product Overview

The 7/8" field-wireable assembly connector features 4 wire receptacles in a 7/8" diameter housing. Designed for industrial applications requiring high electrical performance and reliable connections, this connector is ideal for automation systems and machinery manufacturing.

Key Specifications
Attribute Value
Contact nut material Zinc alloy, nickle-plated
Contact carrier material PA, black
Seal material FPM/FKM
Ambient temperature -25~+85℃
Connector type Screw Locking
Housing material PBT/PA, black
Degree of protection IP67
IP67 7/8" Female Connector 4 Pin Field Wireable Assembly Connectors 0

Contact surface materialBrass, gold-platedInsulation resistance≥100MΩContact resistance≤5mΩPollution degree3Mating cycles>100

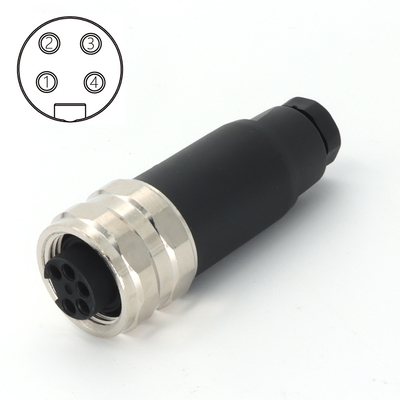

Pin Configuration

<img class="pd-image" data-cke-saved-src="/photo/sensor-connectors/editor/20240723160714_43059.png" src="/photo/sensor-connectors/editor/20240723160714_43059.png" alt="Pin assignment diagram for 7/8" connector"="">

Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Screw connection A 8A 600V Straight 6-8mm H7804F-9/R
Manufacturer Information
IP67 7/8" Female Connector 4 Pin Field Wireable Assembly Connectors 1 IP67 7/8" Female Connector 4 Pin Field Wireable Assembly Connectors 2 IP67 7/8" Female Connector 4 Pin Field Wireable Assembly Connectors 3
Tags:

Industrial Circular Connector,

7/8" Circular Connector,

Waterproof Electrical Connectors
