POE Industrial Ethernet Switches 5 Port Unmanaged DIN Rail Mounting 1000Mbit/S

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Paper box packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

US-05TH

Products Status:

Stock

Function:

Communication Mode:

Full-Duplex & Half-Duplex

Condition:

Power Voltage:

DC12-52V(POE)

Packet Buffer:

1 Mbit

MAC Address Table:

Power Indicator:

Highlight:

POE Industrial Ethernet Switches

DIN Rail Mounting POE Ethernet Switches

Industrial Ethernet Switches 1000Mbit/S

Product Description

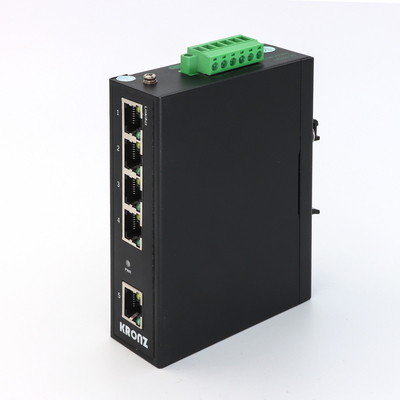

POE Industrial Ethernet Switches 5 Port Unmanaged DIN Rail Mounting 1000Mbit/S

Key Features

Industrial-Grade Design: DIN rail mounting, -40°C to +75°C operating range, IP30 metal housing
High-Speed Gigabit PoE+: 5×10/100/1000BASE-T ports with 4×IEEE 802.3at PoE+ ports (30W per port)
Plug-and-Play Operation: Zero configuration required with auto-negotiation
Robust Protection: Dual 48V DC power inputs, 6KV surge protection, 1500V port isolation

Product Attributes

Attribute	Value
Products Status	Stock
Function	POE
Communication Mode	Full-Duplex & Half-Duplex
Condition	New
Power voltage	DC12-52V(POE)
Packet buffer	1 Mbit
MAC address table	2 K
Power indicator	PWR

Product Description

The US series industrial Ethernet switches support 12~52VDC redundant power input with double protection mechanisms: power polarity reverse protection and an overload current fuse. These unmanaged switches operate in temperatures from -40°C to 75°C, offering exceptional ruggedness for harsh environments. The compact DIN rail mounting design allows for space-saving installation in control cabinets.

Technical Specifications

Port Description

5 x RJ45 female 8 pin (1 uplink, 4 downlink), Auto-MDI/MDIX

Network Protocol

IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3at/af, IEEE802.3z, IEEE802.3x

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Input Voltage

DC12-52V/DC 48-52V(PoE)

Protection Rating

IP40 Metal Housing

Dimensions

117.7 × 88.7 × 34mm (L × W × H)

Weight

0.36Kg

Standards Compliance

FCC Part 15 Subpart B Class A, EN 55022 Class A, IEC/EN61000-4 series

Product Images

Mechanical Dimension Drawing
