Industrial Unmanaged DIN Rail Network Switch 8 Port 100Mbit/S

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Paper box packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

UE-08TC

Transmission Rate:

10/100Mbps

Communication Mode:

Full-Duplex & Half-Duplex

Condition:

Ethernet Port:

8*RJ45 Ports

Power Voltage:

DC12-52V

Packet Buffer:

512 Kbit

MAC Address Table:

Power Consumption:

Highlight:

Unmanaged DIN Rail Network Switch

DIN Rail Network Switch 8 Port

DIN Rail Network Switch 100Mbit/S

Product Description

Industrial Unmanaged DIN Rail Network Switch 8 Port 100Mbit/S

Attribute	Value
Transmission Rate	10/100Mbps
Communication Mode	Full-Duplex & Half-Duplex
Condition	New
Ethernet port	8*RJ45 Ports
Power voltage	DC12-52V
Packet buffer	512 kbit
MAC address table	1 K
Power consumption	< 3w

Product Description

Industrial Ethernet Switches 8-Port Unmanaged 100Mbit/s DIN Rail Network Switch

UE-08TC is an unmanaged industrial Ethernet switch, supporting 8-port 10BaseT/100BaseTX. The UE-08TC switch supports a wide operating temperature range from -30°C to 75°C can satisfy most of various harsh environments, and can be installed in control cabinets in a space-saving way. Features such as DIN rail mounting, wide temperature operation, IP40 protection rating, and LED indicators make the UE-08TC a plug-and-play device, providing reliable and convenient solutions for customers in their network needs.

Product Features

Ensure reliable data transmission and long working life
Transfer speed automatically adjustable via Auto-Negotiation function
Half Duplex/Full Duplex, Auto-crossing
Store-and-forward switching mode, supporting multiple protocols
High quality and reliability, MTBF:300,000 hours
DC 12-52V power input, with reverse-polarity protection
Lightning surge impact protection: 5000A (8/20μs)

Technical Data

Products description	8-port unmanaged Industrial-grade Ethernet switch
Port description	8 x RJ45 female 8 pin, 8-port 10/100Base-T(X) MDI/MDI-X auto-crossover, auto-negotiation
Network protocol	IEEE 802.3 10BaseT IEEE 802.3u 100Base TX/FX IEEE 802.3x - flow control
Environmental conditions	Operating temperature: -30~75°C(-22~167°F) Storage temperature: -40~75°C(-40~167°F) Relative humidity: 5%～95%(no condensation) MTBF: 300,000 hours
Power	Input voltage: DC12-52V Connection terminal: Removable screw terminals block Overload-current: Present Reverse-polarity protection: Present
Mechanical characteristics	Housing: Metal Protection rating: IP40 Mounting: DIN-rail, wall Cooling method: Natural cooling, fanless Weight: 0.36Kg Size: 141x 89x 43mm (L x W x H)
Standards	EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT): Data line: ±4kV CM//±2kV DM IEC(EN)61000-4-5(Surge): Data line: ±4kV CM//±2kV DM IEC(EN)61000-4-6(Conducted Immunity): 3V(10kHz~150kHz), 10V(150kHz~80MHz) IEC(EN)61000-4-16(Common Mode Conducted): 30V cont. 300V,1s IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Performance	Packet buffer memory: 512 kbit MAC address: 1K Power consumption: < 3w Forwarding mode: Store-and-forward LEDs: Power indicator (PWR), Interface (Link status)

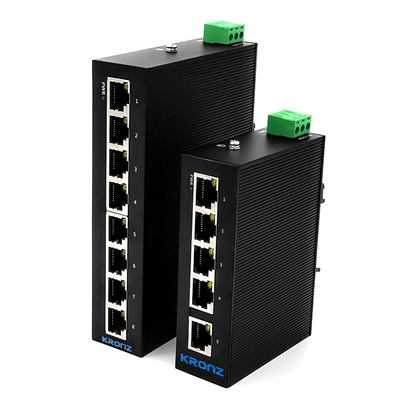

Product Images

Mechanical Dimension Drawing
