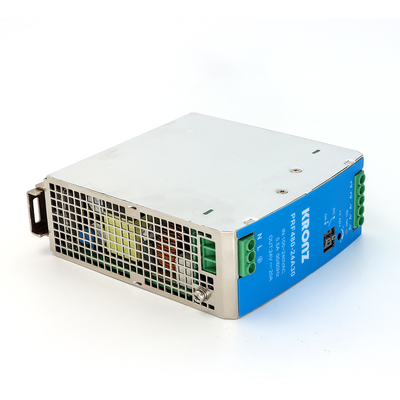

Industrial 480W Din Rail Mounted Power Supply 20A / 24V PLC Power Supply

MOQ:	5 pieces
Price:	Negotiable
Standard Packaging:	Paper box packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

PRF480-24A30

Features:

Accept AC/DC

Product Name:

AC/DC 480W DIN-Rail Power Supply

Application:

Industrial Automation

Mounting Type:

DIN-Rail

Output Voltage:

48-55V

Max. Capacitive Load:

2700μF

Output Power:

Leakage Current:

240VAC

Cooling Method:

Free Air Convection

Highlight:

480W Din Rail Mounted Power Supply

Industrial Din Rail Mounted Power Supply

Industrial 24V PLC Power Supply

Product Description

DIN Rail Power Supply 480W 24V/20A For PLC

Product Overview

Industrial-grade 480W AC/DC power supply designed for industrial automation applications. This DIN rail-mounted unit provides high stability and anti-interference power for control equipment in harsh environments.

Key Features

Universal input voltage: 85-264VAC/120-370VDC
High efficiency up to 94% with active PFC (PF > 0.95)
3000VAC high isolation withstand voltage
Comprehensive protection: short circuit, over-current, over-voltage, over-temperature
Compact design (48mm width) with DIN rail mounting (TS-35/7.5/15)
Wide operating temperature range: -30℃ to +70℃
Low ripple noise and DC OK function
Meets IEC/EN safety standards with good EMC performance

Technical Specifications

Attribute	Value
Output Power	480W
Output Voltage	48-55V
Max. Capacitive Load	2700μF
Leakage Current	240VAC
Cooling Method	Free air convection
Mounting Type	DIN-Rail

Detailed Specifications

Input Specifications

Item	Operating Conditions	Min.	Typ.	Max.	Unit
Input Voltage Range	AC input	85	---	264	VAC
Input Current	230VAC	---	---	2.5	A
Power Factor	230VAC	0.95	---	---	---

Output Specifications

Item	Operating Conditions	Min.	Typ.	Max.	Unit
Output Voltage Accuracy	Full load range	---	±1.0	---	%
Ripple & Noise	20MHz bandwidth (peak-peak value)	---	---	120	mV
Over-voltage Protection	48V	56V-60V	---	---	---

Physical Characteristics

Item	Value
Dimensions	131.50 x 48.00 x 125.00 mm
Weight	980g (Typ.)
Case Material	Metal (AL1100, SPCC) and Plastic (PC940)

EMC Characteristics

Complies with:

CE CISPR32/EN55032 CLASS B
IEC/EN 61000-3-2 CLASS A and CLASS D
IEC/EN 61000-4-2 Contact ±6KV/Air ±8KV
IEC/EN 61000-4-5 line to line ±2KV/line to ground ±4KV
