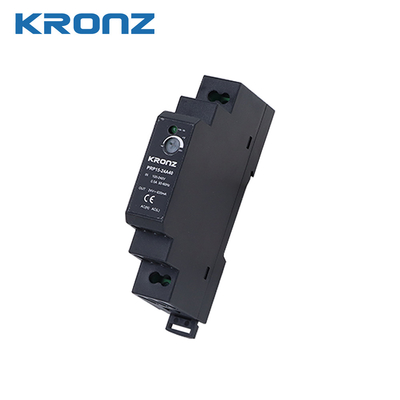

12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV
  • name
  • name

12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV

MOQ: 1
Price: Negotiable
Standard Packaging: Box Packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 10000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
PRP15-05A40
Efficiency (230VAC, %/ Typ.):
80
Output Power:
12W
Safety Standards:
IS13252(Par1)&EN62368-1, BS EN 62368-1(Report);In Line With UL/ IEC62368-1, IEC/ EN61010-1, IEC/ EN61558-1, IEC60335-1
Input Current:
0.5A (115VAC) ; 0.25A (230VAC)
Maximum Capacitive Load (μF):
2000
Output Voltage&Current:
5V/2.4A
Output Voltage Accuracy:
±2%
Power-down Hold Time:
12ms (115VAC) ; 30ms (230VAC
Highlight:

12W Industrial Power Supplies

,

Industrial Power Supplies 5V

Product Description
Industrial Power Supply With Wide Operating Temperature Range (-40°C to +70°C)
12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV 0
Key Features
  • Military-grade precision with ±2% voltage accuracy under load/temperature fluctuations
  • Ultra-lightweight design (60g) with plastic composite housing
  • Extended temperature range: -40°C to +70°C (no derating required)
  • Wide input voltage: 85-264V AC/120-370V DC for universal compatibility
  • Low noise output with <100mV ripple (20MHz bandwidth)
  • Compact dimensions: 45mm × 30mm × 20mm (DIN-rail or surface mount)
Technical Specifications
Attribute Value
Model Number PRP15-05A40
Output Power 12W
Nominal Output Voltage & Current 5V/2.4A
Adjustable Output Voltage Range 4.5~5.5V
Efficiency (230VAC, %/Typ.) 80
Maximum Capacitive Load 2000μF
Output Voltage Accuracy ±2%
Ripple (20MHz) Max. 80mV
Power-down Hold Time 12ms (115VAC); 30ms (230VAC)
Operating Temperature -40~+70°C
Weight 60g
Input Characteristics
AC Input Voltage
85~264VAC
DC Input Voltage
120~370VDC
Input Current
0.5A (115VAC); 0.25A (230VAC)
Input Frequency
47~63Hz
Safety Certifications
IS13252(Par1)&EN62368-1, BS EN 62368-1(Report); In line with UL/IEC62368-1, IEC/EN61010-1, IEC/EN61558-1, IEC60335-1
Reliable Performance for Industrial Applications
The KRONZ Industrial Power Supply delivers stable, efficient power for industrial equipment with its 80% efficiency at 230VAC and excellent load regulation of ±1%. Its wide operating temperature range and robust construction make it ideal for demanding industrial environments.
12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV 1 12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV 2 12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV 3 12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV 4
Product Packaging & Shipping
Each unit is carefully packaged in sturdy cardboard boxes with proper labeling and handling instructions. We ensure prompt delivery via trusted carriers with a supply capacity of 10,000 units per month.
12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV 5 12W Output Power Industrial Power Supplies 5V 2.4A Ripple 20MHz Max. 80mV 6
