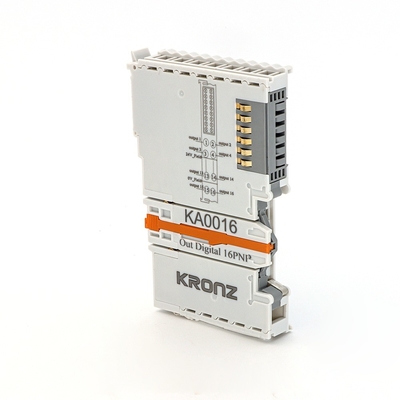

Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20
  • name
  • name

Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20

MOQ: 5 pieces
Price: Negotiable
Standard Packaging: Paper box packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangzhou,China
Brand Name
KRONZ
Certification
CE
Model Number
KA0016
Type:
Digital Input Module
Application:
Industrial Ethernet Bus
Product Name:
16 Channels Digital Output Module
Current Consumption:
106mA
Input Voltage:
24V DC
Output Channels:
16
Output Single Type:
PNP
Output Rated Voltage:
24 V DC(±20%)
Highlight:

PNP Digital Output Module

,

16 Channels Digital Output Module

,

I/O Digital Output Module

Product Description
Remote I/O 16 Channels Digital Output Module PNP 24VDC 106mA IP20
Product Overview

This 16-channel PNP (sourcing) digital output module provides high-density switching for industrial control applications. Designed for 24VDC systems with 106mA per channel, it integrates seamlessly with PLCs, HMIs, and SCADA systems via industrial communication protocols. The IP20-rated enclosure ensures reliable operation in control cabinets.

Key Features
  • 16 PNP (Sourcing) Digital Outputs
    • Output Type: High-side switching (24VDC, +V switching)
    • Current Rating: 106mA per channel (1.7A total module limit)
    • Load Voltage: 24VDC nominal (operating range: 18-30VDC)
  • Industrial Communication & Control
    • Protocol Support: Modbus RTU, Modbus TCP, PROFINET, EtherCAT, or Ethernet/IP (varies by model)
    • Remote Configuration & Monitoring via PLC/SCADA systems
  • Robust & Compact Design
    • DIN Rail Mounting (35mm standard)
    • IP20 Protection - Basic dust resistance (for indoor/panel use)
    • LED Status Indicators (per channel + system diagnostics)
  • Protection & Safety
    • Short-Circuit & Overload Protection (auto-reset or latching option)
    • Reverse Polarity Protection on power supply
    • Galvanic Isolation (500V channel-to-bus)
Technical Specifications
Attribute Value
Model No. KA0016
Current Consumption 106mA
Input Voltage 24VDC
Allowed Range 24VDC(±25%)
Number of Output Channels 16
Output Type PNP
Output Rated Voltage 24VDC(±20%)
Drive Capability Single channel 500mA
Load Type Resistive load, inductive load, lamp load
Isolation and Withstand Voltage 500V
Isolation Method Optocoupler isolation
Dimensions 100mm × 69.65mm × 12mm
Operation Temperature 0~55℃
Storage Temperature -25~85℃
Protection Grade IP20
Company Profile
Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20 0 Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20 1 Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20 2 Remote I/O 16 Channels PNP Digital Output Module 24VDC 106mA IP20 3
