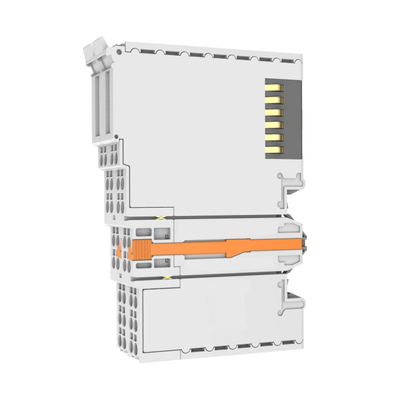

NPN Remote I/O Module 500V 32 Channels Digital Output Module 24VDC
  • name

NPN Remote I/O Module 500V 32 Channels Digital Output Module 24VDC

MOQ: 5 pieces
Price: Negotiable
Standard Packaging: Paper box packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangzhou,China
Brand Name
KRONZ
Certification
CE
Model Number
KA0032N
Product Name:
IO Module
Current Consumption:
106mA
Input Voltage:
24VDC
Allowed Range:
24VDC(±25%)
Drive Capability:
Single Channel 550mA
Load Type:
Resistive Load, Inductive Load, Lamp Load
Isolation And Withstand Voltage:
500V
Operation Temperature:
0~55℃
Highlight:

Remote I/O Module 500V

,

NPN Remote I/O Module

,

Digital Output Module 24VDC

Product Description
NPN Remote I/O Module 500V 32 Channels Digital Output Module 24VDC
Product Specifications
Attribute Value
Product name IO module
Current Consumption 106mA
Input Voltage 24VDC
Allowed Range 24VDC(±25%)
Drive Capability Single channel 550mA
Load Type Resistive load, inductive load, lamp load
Isolation and withstand voltage 500V
Operation Temperature 0~55℃
Product Description

Remote IO Module 500V 32 Channels Digital Output Module NPN Output 24VDC

EtherCAT (Ethernet Control Automation Technology) is an open architecture, an Ethernet-based field bus system, and its name CAT is the abbreviation of the prefix of Control Automation Technology. EtherCAT is a deterministic industrial Ethernet, which was originally developed by the German company Beckhoff. Automation usually requires shorter update times (or cycle times) for communication, low communication jitter when synchronizing data, and low hardware costs. The purpose of EtherCAT's development is to allow Ethernet to be used in automation applications.

Key Features
  • Wide Voltage Range: Stable operation at 18-30VDC
  • Fast Switching: ≤1ms response time per channel
  • Robust Protection: Short-circuit, overload, and reverse polarity protection
  • High Noise Immunity: 500V optical isolation for EMI/RFI resistance
  • Per-Channel LED Status Indicators: Quick fault diagnosis
  • Hot-Swappable: Minimizes downtime during maintenance
  • DIN Rail Mounting: Compact, space-saving industrial installation
  • Modbus RTU/TCP: Seamless PLC/SCADA integration
  • PROFINET, EtherCAT: Real-time industrial Ethernet support
  • DeviceNet, CANopen: Legacy fieldbus compatibility
Technical Data
Product model KA0032N
Product Name 32 channels digital output module
Power Specification
Current Consumption 106mA
Input Voltage 24VDC
Allowed Range 24VDC(±25%)
Output Characteristics
Number of Output Channels 32
Output Single Type PNP
Output Rated Voltage 24VDC(±20%)
Drive Capability Resistive load, inductive load, lamp load
Isolation and withstand voltage 500V
Isolation method Optocoupler isolation
Physical Property
Dimension 100mm x 69.65mm x 24mm
Operation Temperature 0~55℃
Protection Grade IP20
Module Diagrams
NPN Remote I/O Module 500V 32 Channels Digital Output Module 24VDC 0

Module installation diagram

NPN Remote I/O Module 500V 32 Channels Digital Output Module 24VDC 1

Module disassembly diagram

Application Scenarios
NPN Remote I/O Module 500V 32 Channels Digital Output Module 24VDC 2
Adapter connected to power supply
NPN Remote I/O Module 500V 32 Channels Digital Output Module 24VDC 3
