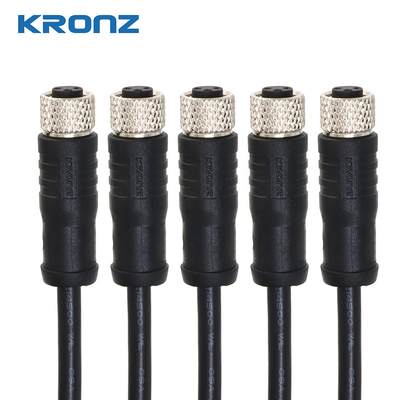

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector

Products

Photoelectric Sensors

sales02@kronz.cn

+8618924160375

Contact Now

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector

MOQ:	50
Price:	TBC
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

M0803F-15/P00K

Contact Carrier Material:

PA, Black

Voltage:

Contact Surface Material:

Brass, Gold-plated

Insulation Resistance:

≥100MΩ

Contact Nut Material:

Brass, Nickle-plated

Cable Length:

10m, 15m

Housing Material:

TPU, Black

Wire Color:

1=BN,3=BU,4=BK

Highlight:

M8 IP67 Waterproof Connector

Female IP67 Waterproof Connector

Pre Assembled M8 Waterproof Connector

Product Description

Pre Assembled Female M8 IP67 Waterproof Connector 60V Sensor Connector

Product Attributes

Attribute	Value
Contact carrier material	PA, Black
Voltage	60V
Contact surface material	Brass, Gold-plated
Insulation resistance	≥100MΩ
Contact nut material	Brass, Nickle-plated
Cable length	10m, 15m
Housing material	TPU, Black
Wire color	1=BN,3=BU,4=BK

Product Description

M8 Connector with Pre-assembled Cable 15m Sensor Connector 3-pin A-coding IP67

The M8 Connector is a female connector that is suitable for use with a wide range of sensors and other devices. It features a coding of A, which ensures that it is easy to connect and disconnect, and is rated to operate in temperatures ranging from -25~+85℃. This makes it an ideal choice for use in a range of different environments, including those that are subject to extreme temperatures.

What is an M8 Connector?

By Physical Appearance & Types:

Shape: Circular, compact design with a metal or plastic shell.
Threading: Features an M8×1mm screw thread for secure mating.
Coding Types:
- A-coded: Used for sensors/actuators (e.g., 3-4 pins)
- B-coded: For PROFIBUS networks
- D-coded: Ethernet (4-pin, Cat5e)
Gender: Available in male (plug) and female (socket) versions.

Technical Data

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1=BN 3=BU 4=BK	A	3A	60V	3x0.25 (3x24AWG) PVC,black	Straight	15M	M0803F-15/P00K
