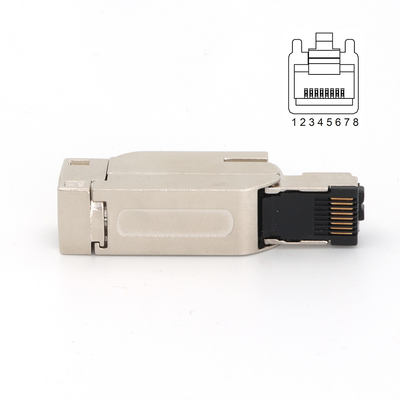

RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing
  • name
  • name

RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing

MOQ: 50 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Chiina
Brand Name
KRONZ
Certification
CE
Model Number
RJ45S/C80
Product Name:
RJ45 Field-wirable Assembly Connector
Color:
Siliver
Contact Nut Material:
Zinc Alloy, Nickle-plated
IP Rate:
IP20
Pin Assignment:
8 PIN
Transmission Characteristics:
Cat5e
Data Rate:
10/100/1000 Mbit/s
Mating Cycles:
≥10
Highlight:

RJ45 Field Assembly Connector

,

RJ45 Wireable Field Assembly Connector

,

RJ45 8 Pin Connector

Product Description
RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing

An RJ45 field-wireable straight connector is a ruggedized, modular Ethernet connector designed for on-site cable termination in industrial and commercial networks. This connector type is particularly valuable in maintenance scenarios where cable replacement would cause excessive downtime. The straight design optimizes space in control panels while allowing easy access to termination points.

Product Specifications
Attribute Value
Product Name RJ45 Field-wirable Assembly Connector
Color Silver
Contact nut material Zinc alloy, nickel-plated
IP rate IP20
Pin assignment 8 PIN
Transmission characteristics Cat5e
Data rate 10/100/1000 Mbit/s
Mating cycles ≥10
RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 0
Technical Data
Pin assignment 8 PIN
Contact nut material Zinc alloy, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material Zinc alloy, nickel-plated
Contact method IDC
Degree of protection IP20
Transmission characteristics Cat5e
Data rate 10/100/1000 Mbit/s
Power transmission POE, POE+
Ambient temperature -25~+85℃
Mating cycles ≥10
Pin Assignment Details
Pin assignment Type Rated current Voltage Wire gauge Cable outlet Model No.
RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 1 RJ45 1.5A 45V 0.14~0.34 mm²
26~22 AWG
cable diameter: 6.5mm		 Straight RJ45S/C80
Manufacturer Information
RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 2 RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 3 RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 4 RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 5 RJ45 Wireable Field Assembly Connector Straight 8 Pin Metal Housing 6
Tags:

Industrial Ethernet Connector,

Waterproof Ethernet Connectors,

Wireable Field Assembly Connector
