48V RJ45 Connector 4 Pin 24AWG Contact Resistance Customized Cable Length

Products

Photoelectric Sensors

sales02@kronz.cn

+8618924160375

Contact Now

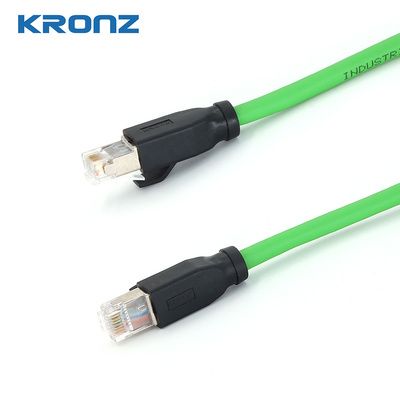

48V RJ45 Connector 4 Pin 24AWG Contact Resistance Customized Cable Length

MOQ:	80
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

RJ45S-3/E10K

Seal Material:

FPM/FKM

Contact Suface Material:

Brass,gold-plated

Contact Nut Material:

Brass,nickel-plated

Pollution Degree:

Voltage:

Material Of Grip Body:

TPU,black

Insulation Resistance:

≥100MΩ

Highlight:

48V RJ45 Connector

RJ45 Connector 4 Pin

48V Rj45 4 Pin Connector

Product Description

48V RJ45 Connector 4 Pin 24AWG Contact Resistance Customized Cable Length

Product Attributes

Attribute	Value
Seal material	FPM/FKM
Contact surface material	Brass, gold-plated
Contact nut material	Brass, nickel-plated
Pollution degree	3
Voltage	48V
Material of grip body	TPU, black
Pin	4, 8
Insulation resistance	≥100MΩ

Product Description

RJ45 Connector 4 Pins 24AWG Contact Resistance 48V Customized Cable Length

The RJ45 Connector features a contact nut material that is made of brass and nickel-plated, which provides excellent corrosion resistance and durability. This ensures that the connector will maintain a secure and reliable connection for years to come, even in harsh environments.

Technical Data

Thread type	RJ45
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP20

Pin Assignment

Pin assignment	Wire color	PIN	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = YE 2 = OR 3 = WH 6 = BU	4PIN	1.5A	48V	2×2×0.25,shielded (2×2×24AWG) Blueish green, PVC, OD=6.5	Straight	3M	RJ45S-3/E10K

Application

The RJ45 Connector Cat5 is ideal for a variety of networking applications. It can be used in computer networking, telecommunication systems, and video surveillance systems. Its IP20 degree of protection ensures that it is protected from dust, debris, and other environmental factors that could damage the connector.

With a contact resistance of ≤5mΩ, the RJ45 Connector Cat5 provides a reliable connection for high-speed data transfer. Its wire gauge of 24AWG allows for easy termination and installation.

Company Profile

Tags:

Products

MOQ:	80
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

RJ45S-3/E10K

Seal Material:

FPM/FKM

Contact Suface Material:

Brass,gold-plated

Contact Nut Material:

Brass,nickel-plated

Pollution Degree:

Voltage:

48V

Material Of Grip Body:

TPU,black

Pin:

4, 8

Insulation Resistance:

≥100MΩ

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Polybag packing

Delivery Time:

5-8 working days

Payment Terms:

T/T,Western Union,MoneyGram

Supply Ability:

100000 pieces per month

Highlight

48V RJ45 Connector

RJ45 Connector 4 Pin

48V Rj45 4 Pin Connector

Product Description

48V RJ45 Connector 4 Pin 24AWG Contact Resistance Customized Cable Length

Product Attributes

Attribute	Value
Seal material	FPM/FKM
Contact surface material	Brass, gold-plated
Contact nut material	Brass, nickel-plated
Pollution degree	3
Voltage	48V
Material of grip body	TPU, black
Pin	4, 8
Insulation resistance	≥100MΩ

Product Description

RJ45 Connector 4 Pins 24AWG Contact Resistance 48V Customized Cable Length

Technical Data

Thread type	RJ45
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP20

Pin Assignment

Pin assignment	Wire color	PIN	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = YE 2 = OR 3 = WH 6 = BU	4PIN	1.5A	48V	2×2×0.25,shielded (2×2×24AWG) Blueish green, PVC, OD=6.5	Straight	3M	RJ45S-3/E10K

Application

With a contact resistance of ≤5mΩ, the RJ45 Connector Cat5 provides a reliable connection for high-speed data transfer. Its wire gauge of 24AWG allows for easy termination and installation.
