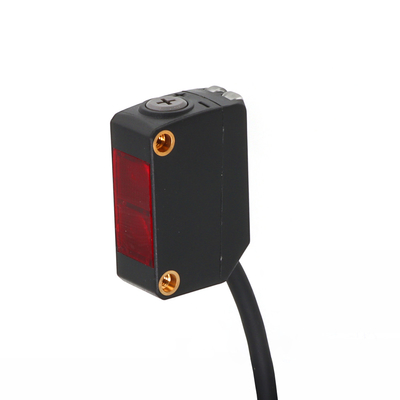

IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design
  • name
  • name

IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design

MOQ: 5 pieces
Price: Negotiable
Standard Packaging: Paper box packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
BQ22-G200P
Mounting Type:
Nut Fixing
Description:
Photoelectric Sensor
Theory:
Red LED
Output:
12-24V DC
Setting Range:
40-200mm
Reaction Time:
Max.1ms
Power Indicator:
Green LED
Ambient Humidity:
35~85%RH,storage:-35~85%RH
Highlight:

IP67 Photoelectric Sensors

,

Photoelectric Sensors 24V DC

,

Photo Electric Sensor 12V DC

Product Description
IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design
Product Specifications
Attribute Value
Mounting Type Nut fixing
Description Photoelectric Sensor
Theory Red LED
Output 12-24V DC
Setting range 40-200mm
Reaction time Max.1ms
Power indicator Green LED
Ambient humidity 35~85%RH,storage:-35~85%RH
Product Features
  • Not affected by the target color and background color interference
  • Precisely detect objects
  • High accuracy, with small differential distance, and can detect tiny segment differences
  • Anti-interference, and easy to install
  • IP67 protective structure
IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design 0 IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design 1
Technical Specifications
Setting range 40-200mm
Detect the distance (white matte paper) 20-300mm
Deviation Below 2% of the rated detection distance
Spot dimension 110mm*6mm(distance 200mm); 60mm*6mm(distance 100mm);35*5mm(distance 50mm)
Consuming current Below 25mA
Control output Light ON/Dark Equip with two outputs
Light source Red LED(Light projection peak wavelength: 650nm, modulation type)
Short circuit protection Yes
Reaction time Max.1ms
Working indicator Red LED(output light on)
Power indicator Green LED
IP Level IP67
Ambient Temperature -25 ~ +55 °C (no freezing), storage: -30 °C ~ +70 °C (no freezing)
Ambient humidity 35~85%RH,storage:-35~85%RH
Ambient illuminance Incandescent lamp:illumination degree of light receiving surface is below 3000lx
Withstand voltage AC1000V 1min between all power connection teminals and enclosure
Insulation resistance All power connection terminals and enclosure,more than 20MΩ,based on dc250v meggar
Vibration Resistance 10-500HZ ampltitude 3mm(MAX.50G) X,Y and Z each 2 hours
Anti vibration Acceleration 500m/s²(50G), each 2 hours for X,Y,Z axis
Spot diameter φ20mm (distance 300mm)
Cast Light Element Shell: PC
Product Dimensions
IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design 2
Connection Diagram
IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design 3 IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design 4 IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design 5 IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design 6 IP67 Photoelectric Sensors 12 - 24V DC Output With Anti Interference Design 7
