Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source
  • name
  • name

Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source

MOQ: 1
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 10000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
KD50-250N
Housing Material:
Housing: PBT, Lens: PMMA
Sampling Period:
500/ 1000/ 1500/ 2000μs
Storage Humidity:
35~95%RH(no Condensation Or Icing)
Storage Temperature:
-20~60°C
Ambient Illuminance:
Sunlight: ≤10000lux, Lamp:≤3000lux
Spot Size (max.) Center Range:
1.75x3.5mm
Connection Type:
Cable
Wavelength:
655nm
Highlight:

Industrial Photoelectric Sensors

,

Photoelectric Sensors 655nm

,

Industrial Photo Electric Sensor

Product Description
Industrial Grade Photoelectric Sensors with ±0.1%F.S. Linearity Accuracy and Red Laser Diode Light Source
Key Features
  • High precision with ±0.1%F.S. linearity accuracy
  • Red laser diode light source (655nm wavelength)
  • Robust housing material: PBT housing with PMMA lens
  • Adjustable sampling period: 500/1000/1500/2000μs
  • Wide operating range: -20~60°C temperature, 35~95%RH humidity
  • Compact spot size: 1.75x3.5mm at center range
Technical Specifications
Attribute Value
Housing Material Housing: PBT, Lens: PMMA
Sampling Period 500/1000/1500/2000μs
Storage Humidity 35~95%RH (no condensation or icing)
Storage Temperature -20~60°C
Ambient Illuminance Sunlight: ≤10000lux, Lamp: ≤3000lux
Spot Size (max.) Center Range 1.75x3.5mm
Connection Type Cable
Wavelength 655nm
Detailed Specifications
Parameter Value
Cable Type 2CH KD50-250N
Output Signal Switching output: NPN (-N)
Detection Range 250±150mm
Full Scale (F.S.) 300mm
Light Source Red Laser diode (wavelength 655nm)
IEC/JIS Rating (FDA Rating) Class 2 (Class Ⅱ)
Spot Size (max.) Near Range 1.5x2.5mm
Spot Size (max.) Far Range 2.0x4.5mm
Repeatability (High-speed Mode) 100μm
Repeatability (Other Mode) 75μm
Shock Resistance 50G (500m/s²)
Advantages of CMOS Laser Displacement Sensor
  • Micron-level high precision accuracy
  • Fast response time for real-time measurements
  • Stable readings on various surface types
  • Compact and robust design for industrial environments

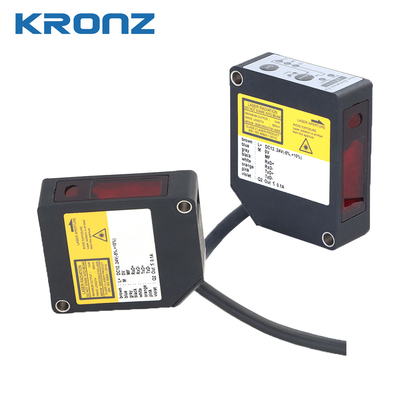

Product Images
Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 0 Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 1 Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 2 Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 3 Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 4
Applications

KRONZ Photoelectric Sensors are versatile devices suitable for various industrial automation applications:

  • Precision object detection and positioning
  • Automated counting systems
  • Quality control measurements
  • Process automation integration
  • Robotic guidance systems

Their analog output capabilities provide precise data for seamless integration into automated processes across multiple industries.

Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 5 Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 6 Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 7 Industrial Photoelectric Sensors 655nm Wavelength With Red Laser Diode Light Source 8
