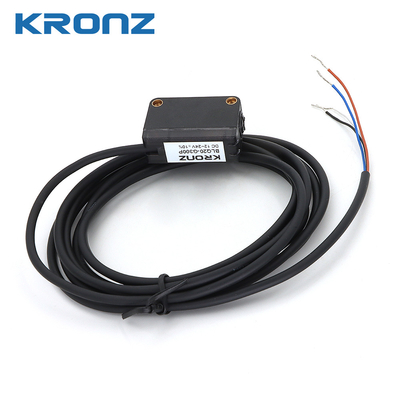

Linear Beam Photoelectric Sensors 30mm - 300mm Distance NPN Output Diffuse Reflection

Products

Photoelectric Sensors

sales02@kronz.cn

+8618924160375

Contact Now

Linear Beam Photoelectric Sensors 30mm - 300mm Distance NPN Output Diffuse Reflection

MOQ:	1
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

BLQ20S-G300N

Sensing Distance:

30-300mm

Application:

Industrial Automation

Output:

Rsidual Voltage:

＜2V (operating Current:＜10~100mA)

Operating Humility:

35%~85%RH

Storage Humility:

35~95%RH (non-freezing,non-condensing)

IP Rating:

IEC60529: IP64

Power Supply:

DC 12~24V; Ripple :±10%

Highlight:

Linear Beam Photoelectric Sensors

Diffuse Photoelectric Sensors

Photoelectric Sensor 300mm

Product Description

Linear Beam Photoelectric Sensors with <0.5ms Response Time (NPN Output, Diffuse Reflection)

Key Specifications

Sensing Distance	30-300mm
Application	Industrial Automation
Output	NPN
Residual Voltage	<2V (operating current: <10~100mA)
Operating Humidity	35%~85%RH
Storage Humidity	35~95%RH (non-freezing, non-condensing)
IP Rating	IEC60529: IP64
Power Supply	DC 12~24V; ripple: ±10%

Product Overview

Our long-range photoelectric sensor uses infrared LED technology to reliably detect opaque objects within a 30-300mm range. Designed for industrial automation, this NPN output sensor features an ultra-fast <0.5ms response time and robust IP64-rated housing.

CMOS Laser Displacement Technology

For precision measurement applications requiring micrometer-level accuracy, our CMOS Laser Displacement Photoelectric Sensor projects a focused laser beam onto target surfaces. The reflected light is captured by a CMOS image sensor to calculate exact distances without physical contact - ideal for delicate, moving, or hot components.

Technical Parameters

Model	BLQ20S-G300N (Linear beam)
White/Black Deviation	3% (160mm)
Distance Deviation	<3%
Sensing Range	30-300mm
Current Consumption	<3mA
Wavelength	Laser (655nm)
Response Time	<0.5ms
Ambient Temperature	Operating: -25°C~+55°C Storage: -40°C~+70°C (non-freezing, non-condensing)
Housing Material	PBT

Industrial Applications

These versatile photoelectric sensors are ideal for precision measurement and object detection in demanding industrial environments.

Medical & Precision Instrument Applications

Syringe and vial dimension inspection for pharmaceutical quality control
Micro-assembly tolerance verification in diagnostic equipment
Surface inspection of medical-grade molded components
