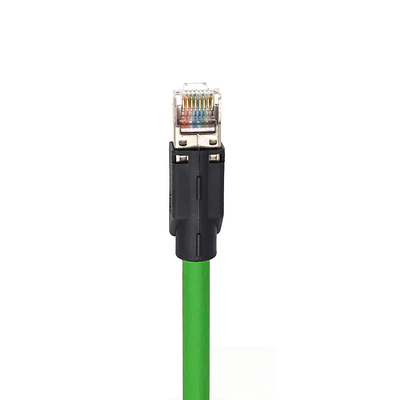

IP20 RJ45 Connectors Pre Assembled Cable Industrial Ethernet Connector

MOQ:	50 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

RJ45S-2/E621

Type:

Description:

Pre-assembled Cable With RJ45 Connector

Cable Color:

Green

Material:

Degree Of Protection:

Mating Cycles:

Ambient Temperature:

-25~+85℃

Highlight:

RJ45 Connectors Pre Assembled

RJ45 Connectors Industrial

RJ45 Industrial Ethernet Connector

Product Description

Ethernet IP RJ45 Connector Pre Assembled Cable

Product Specifications

Type	RJ45
Description	Pre-assembled Cable with RJ45 Connector
Pin	8
Cable color	Green
Material	PVC
Degree of protection	IP20
Mating cycles	>100
Ambient temperature	-25~+85℃

Product Description

The RJ45 connector is a standard network connection interface designed for reliable interconnection of network devices. Using twisted pair technology, it enables multiple devices to connect to switches, facilitating the creation of extensive network systems. The RJ45 interface also supports modem connections for efficient remote data transmission.

Technical Specifications

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Configuration

Wire color	PIN	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1 = WH/OR 2 = OR 3 = WH/GN 4 = BU 5 = WH/BU 6 = GN 7 = WH/BN 8 = BN	8PIN	1.5A	48V	4×2×0.25,shielded (4×2×24AWG) yellowish green, PVC,drag chain, OD=8.0	Straight	2M	RJ45S-2/E621
						5M	RJ45S-5/E621
						10M	RJ45S-10/E621

Manufacturer Information
