Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V
  • name
  • name

Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V

MOQ: 50 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
RJ45S-2/E301
Type:
RJ45
Description:
Pre-assembled Cable With RJ45 Connector
Pin:
4
Cable Color:
Blueish Green
Material:
PVC
Wire Gauge:
2×2×0.25,shielded (2×2×24AWG)
Cable Outlet:
Straight
Length:
2M/5M/10M/Customized
Highlight:

Straight Shielded Ethernet Connector

,

RJ45 Connectors 4 Pin

,

Shielded Rj45 Connectors

Product Description

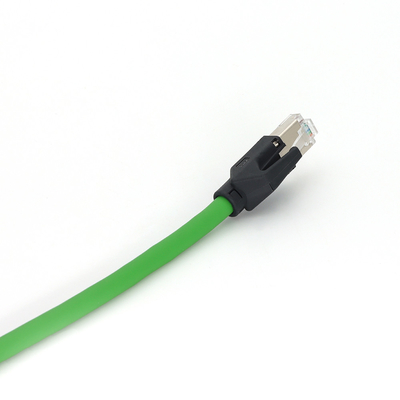

Pre Assembled Cable RJ45 Connector 4 Pin 48V Straight Ethernet Shielded
Product Specifications
Attribute Value
Type RJ45
Description Pre-assembled Cable with RJ45 Connector
Pin 4
Cable color Blueish green
Material PVC
Wire gauge 2×2×0.25,shielded (2×2×24AWG)
Cable outlet Straight
Length 2M/5M/10M/Customized
Product Overview

The RJ45 connector is a widely used network and telephone connection interface designed for interconnecting various network devices to achieve reliable data transmission and stable telephone signal transfer. This standardized interface is extensively implemented across multiple industries.

Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V 0
Technical Specifications
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration
Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V 1
  • 1 = WH/OR
  • 2 = OR
  • 3 = WH/GN
  • 6 = GN

Rated current: 1.5A

Voltage: 48V

Available lengths: 2M (RJ45S-2/E301), 5M (RJ45S-5/E301), 10M (RJ45S-10/E301)

Manufacturer Information
Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V 2 Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V 3 Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V 4 Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V 5 Straight Shielded Ethernet Rj45 Connectors 4 Pin RJ45 Connector 48V 6
