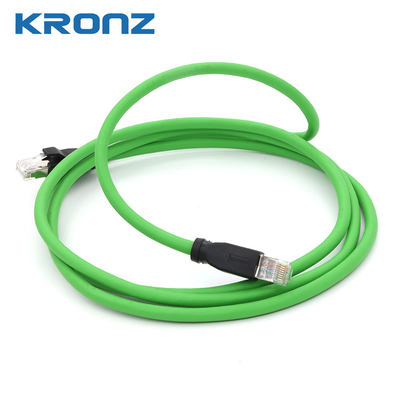

IP20 Protection Ethernet RJ45 Connector Waterproof 48V Pollution Degree 3

MOQ:	80
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

RJ45S-3/E60K

Material Of Grip Body:

TPU,black

Ambient Temperature:

-25~+85℃

Pollution Degree:

Rated Current:

Contact Resistance:

Insulation Resistance:

≥100MΩ

Mating Cycles:

Cable Outlet:

Straight

Highlight:

Ethernet RJ45 Connector Waterproof

IP20 RJ45 Connector Waterproof

RJ45 Connector Waterproof 48V

Product Description

IP20 Protection Ethernet RJ45 Connector Waterproof 48V Pollution Degree 3

Attribute	Value
Material of grip body	TPU, black
Ambient temperature	-25~+85℃
Pollution degree	3
Rated current	1.5A
Contact resistance	≤5mΩ
Insulation resistance	≥100MΩ
Mating cycles	>100
Cable outlet	Straight

Rated for a current of 1.5A, the RJ45 Connector can handle power-intensive applications with ease. It supports wire gauges of 26AWG, making it a versatile choice for a variety of Ethernet RJ45 Connector applications.

Technical Data

Thread type	RJ45
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP20

Pin Assignment

Pin assignment	Wire color	PIN	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = WH/OR 2 = OR 3 = WH/GN 4 = BU 5 = WH/BU 6 = GN 7 = WH/BN 8 = BN	8	1.5A	48V	4×2×0.16, shielded (4×2×26AWG) Blueish green, PVC, OD=6.6	Straight	3M	RJ45S-3/E60K
