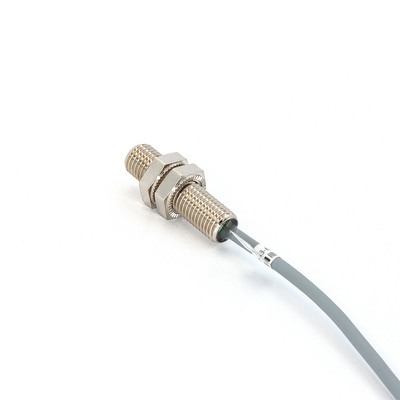

NPN Normally Closed Inductive Sensors With 3mm Detection Distance
  • name
  • name
  • name
  • name

NPN Normally Closed Inductive Sensors With 3mm Detection Distance

MOQ: 10 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
IS2-M8NC30-S0C2/B
Features:
Position Detection
Mounting Type:
Quasi-flush
Type:
Inductive Proximity Sensor
Theory:
Inductive Proximity Sensor
Output:
10-30VDC
Installation Type:
Quasi-flush
Protection Grade:
IP67
Ambient Temperature:
-25℃ To +70℃
Highlight:

Normally Closed Inductive Sensors

,

NPN Inductive Sensors

,

NPN Inductive Proximity Sensor

Product Description
NPN Normally Closed Inductive Sensors With 3mm Detection Distance
Product Attributes
Attribute Value
Features Position detection
Mounting Type Quasi-flush
Type Inductive Proximity Sensor
Theory Inductive Proximity Sensor
Output 10-30VDC
Installation type Quasi-flush
Protection grade IP67
Ambient temperature -25℃ to +70℃
Product Description

Inductive Sensor with 3mm Detection Distance and NPN Normally Closed Output

This NPN normally closed (NC) inductive proximity sensor offers precise non-contact detection of metallic objects with a 3mm sensing range. Its NC (normally closed) circuit provides fail-safe operation, breaking contact when a target is detected - ideal for safety-critical applications.

Key Features:
  • NPN Normally Closed (NC) Output - Sinking output (opens when target detected)
  • 3mm Sensing Distance - Optimized for small metal part detection
  • Industrial-Grade Construction - Durable housing (brass/stainless steel options)
  • LED Status Indicator - Visual power/detection confirmation
  • 10-30V DC Operating Voltage - Compatible with standard control systems
  • IP67 Protection Rating - Resistant to dust, water, and oil splashes
Technical Data
Installation type Quasi-flush
Sensing range Sn 3mm
LED display Yes
Connection method 2 meter cable
Shell Stainless steel
Working voltage 10-30VDC
Allowable ripple voltage <10%
No load current <10mA
Max. load current 200mA
Current drop <0.01mA
Voltage drop <1.5V
Switching frequency 1kHz
Response time 0.2ms
Switched reluctance <15%sr
Repeat accuracy <1.0%sr
Protection grade IP67
Ambient temperature -25℃ to +70℃
Temperature drift <10%sr
Short-circuit protection/Reverse polarity protection Yes
Overload current protection 220mA
Sensing surface material PBT
Dimensional Drawing and Wiring Diagram
NPN Normally Closed Inductive Sensors With 3mm Detection Distance 0
NPN Normally Closed Inductive Sensors With 3mm Detection Distance 1
