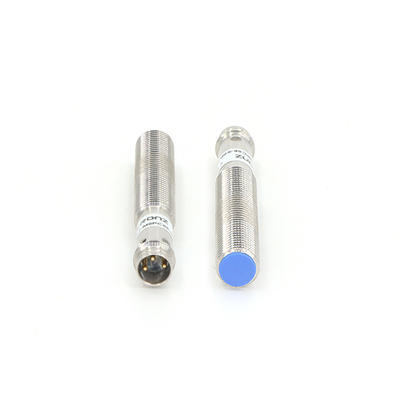

POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance
  • name
  • name

POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance

MOQ: 10 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
IS2-M8PO60-S0B/D
Installation Type:
Quasi-flush
LED Display:
Yes
Working Voltage:
10-30VDC
Max. Load Current:
100mA
Tolerance:
<10%
Response Time:
0.1ms
Sensing Surface Material:
POM
Overload Current Protection:
220mA
Highlight:

POM Inductive Proximity Sensor

,

Inductive Proximity Sensor 2mm

,

Inductive PNP NO Proximity Sensor

Product Description
POM Inductive Sensors Output PNP NO Quasi Flush 2mm Detection Distance
Product Attributes
Installation Type Quasi-flush
LED Display Yes
Working Voltage 10-30VDC
Max. load current 100mA
Tolerance <10%
Response Time 0.1ms
Sensing Surface Material POM
Overload Current Protection 220mA
Product Description

The M8 inductive sensor is a compact, high-precision sensor primarily used to detect the presence or position of metal objects. It operates based on inductive principles and is widely used in automation equipment and industrial control systems. Due to its small size and easy installation, it is particularly suitable for applications with limited space or where miniaturization is required.

Key Features
  • Installation type: Quasi-flush
  • Sensing range Sn: 2mm
  • Output function: PNP, NO
  • Supply voltage: 10-30VDC
  • Connection type: M8 connector
  • Housing material: Stainless steel
POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance 0 POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance 1
Technical Specifications
Installation Type Quasi-flush
Detection Distance 2mm
LED Display Yes
Working Voltage 10-30VDC
No Load Current <10mA (24V)
Max. load current 100mA
Voltage drop <2.0v
Switching frequency 3kHZ
Tolerance(Sr) ＜10%
Leakage current ＜0.01mA
Response time 0.1ms
Temperature drift ＜10%sr
Switch hysteresis <15%sr
Repeatability <1.0%sr
Short-circuit protection/Reverse polarity protection Yes
Overload current protection 220mA
Protection grade IP67
Ambient temperature -25℃ to +70℃
Sensing surface material POM
Connection type M8 connector
Product Diagrams
POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance 2 POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance 3
Company Information
POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance 4 POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance 5 POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance 6
POM Inductive Proximity Sensor Output PNP NO Quasi Flush 2mm Detection Distance 7
