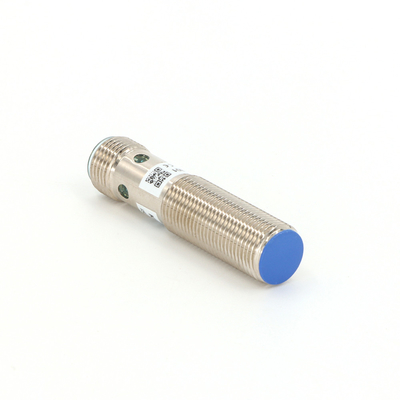

M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm
  • name
  • name

M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm

MOQ: 5 pieces
Price: Negotiable
Standard Packaging: Paper box packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
IS2-M8PC50-M0A/S
Product Name:
Inductive Proximity Sensor
Mounting Type:
Quasi-flush
Type:
Inductive Proximity Sensor
Output:
10-30VDC
Installation Type:
Quasi-flush
Protection Grade:
IP67
Ambient Temperature:
-25℃ To +70℃
Connection Type:
M12 Connector
Highlight:

M12 Connector Inductive Sensors

,

PNP NC Inductive Sensors

,

2mm M12 Inductive Sensor

Product Description
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm
Product Overview

This M12 connector inductive proximity sensor features a PNP normally closed (NC) output with quasi-flush mounting for reliable detection of metallic objects at 2mm range. The compact design and standardized M12 interface ensure easy integration into automated systems.

Key Features
  • PNP Normally Closed (NC) Output - Sourcing output (breaks circuit when target detected)
  • Quasi-Flush Mounting - Partial side detection capability with reduced interference
  • 2mm Sensing Distance - Precise detection for small metal components
  • M12 Quick-Connect Interface - 3-wire or 4-wire versions available
  • LED Status Indicator - Power-on and detection confirmation
  • 10-30V DC Operating Voltage - Compatible with industrial control systems
  • IP67 Protection Rating - Resistant to dust, water, and temporary immersion
Technical Specifications
Installation type Quasi-flush
Sensing range Sn 2mm
Detected object Magnetic metal
Standard detection object (iron) 12x12x1mm
Set distance 0-1.6mm
Tolerance distance Detection distance below 10%
Response frequency 800Hz
Working voltage 10-30VDC
Leakage current <0.8mA
Max. load current 200mA
Voltage drop <1V
LED display Red
Protection circuit Surge protection circuit, short circuit protection, polarity reversal protection
Ambient temperature -25 to +70°C (no freezing, no condensing)
Ambient humidity 35-95%RH (no condensing)
Effect of temperature Temperature range -25 to 70°C, with a detection distance within ±10% for every 20°C change
Effect of voltage When the rated power supply voltage fluctuates within ±15%, the detection distance changes within ±1%
Insulation resistance >50MΩ
Withstand voltage AC1000V
Vibration resistance 10 to 55 Hz, up and down amplitude 1.5 mm in the X, Y, and Z directions for each 2 hours
Impact resistance 500m/S², 10 times in each direction of X, Y and Z
Connection type M12 Connector
Sensing surface material PBT
Protection grade IP67
Dimensions & Wiring
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm 0
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm 1
Manufacturer Information
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm 2
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm 3
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm 4
M12 Connector Inductive Sensors PNP NC Quasi Flush Detection Distance 2mm 5
