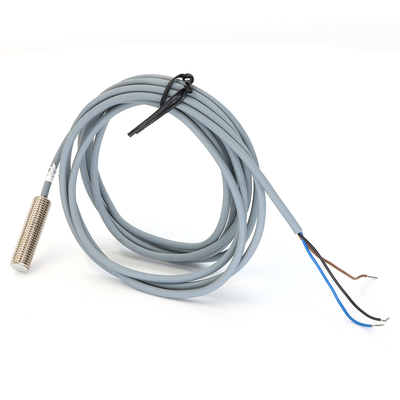

Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable
  • name
  • name

Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable

MOQ: 10 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
IS3-M8PO30-S0C2
Decription:
Inductive Sensors
Sensing Range:
3mm
Connection Method:
2 Meter Cable
Shell:
Stainless Steel
Allowable Ripple Voltage:
<10%
No Load Current:
200mA
Highlight:

Cylindrical M8 Inductive Sensor

,

M8 Inductive Sensor 3mm

,

Inductive NPN NC Sensor

Product Description
Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable
Product Attributes
Attribute Value
Description Inductive Sensors
Sensing Range 3mm
Connection Method 2 meter cable
Shell Stainless steel
Allowable Ripple Voltage <10%
No Load current 200mA
Product Description

Inductive sensors contribute significantly to quality control. They can precisely detect the presence and alignment of metal parts during production, reducing errors and improving product quality. Inductive sensors are also indispensable in industrial automation. They enable proximity detection in machinery, preventing accidents and minimizing damage. For example, in conveyor systems, they ensure that objects are properly positioned and avoid jams.

Features
  • Installation type: Quasi-flush
  • Sensing range Sn: 3mm
  • Output function: NPN,NC
  • Supply voltage: 10-30VDC
  • Connection type: 2 meter cable
  • Housing material: Stainless steel
Technical Data
Installation Type Quasi-flush
Detection Distance 3mm
LED Display Yes
Connection Method 2 meter cable
Shell Stainless steel
Working Voltage 10-30VDC
Allowable Ripple Voltage <10%
No Load Current <10mA
Max. load current 200mA
Voltage drop <1.5v
Switching frequency 1kHZ
Response time 0.2ms
Switched Reluctance <15%sr
Repeat Accuracy <1.0%sr
Protection Grade IP67
Ambient temperature -25℃ to +70℃
Temperature Drift <10%sr
Short-circuit Protection/Reverse Polarity Protection Yes
Overload Current Protection 220mA
Sensing Surface Material PBT
Connection Method 2 meter cable
Dimensional Drawing
Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable 0
Dimensional specifications of the M8 inductive sensor
Wiring Diagram
Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable 1
Electrical connection diagram for proper installation
Company Profile
Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable 2 Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable 3 Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable 4 Cylindrical M8 Inductive Sensor 3mm Detection Distance NPN NC 2m Cable 5
