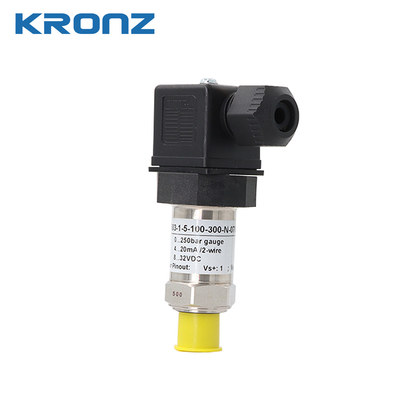

Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor
  • name
  • name

Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor

MOQ: 5 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
KP30-2503-1-5-100-300-N-070-DB037
Gauge Pressure [bar:
1
Max. Overvoltage(static) [bar:
1
Bursting Pressure≥ [bar:
1
Vacuum Resistance:
Unlimited
Standard:
2 Wire: 4 ... 20 MA / VS = 8 ... 32 VDC
Response Time:
2 Wire: ≤ 10 Ms
Highlight:

Pressure Transmitter 20mA

,

Heavy Load Pressure Transmitter

,

Welded Stainless Steel Pressure Sensor

Product Description
Heavy Load Pressure Transmitter KP30 2wire 4-20mA Welded Stainless Steel Pressure Sensor
Product Specifications
Attribute Value
Gauge pressure [bar] 1
Max. overvoltage(static) [bar] 1
Bursting pressure≥ [bar] 1
Vacuum resistance Unlimited
Standard 2 wire: 4 ... 20 mA / VS = 8 ... 32 VDC
Response time 2 wire: ≤ 10 ms
About 4-20mA Pressure Transmitters
A pressure transmitter (or pressure transducer) with a 4-20mA output is a highly reliable device commonly used in industrial environments to accurately measure pressure and convert it into a standardized electrical signal. This analog signal--ranging from 4mA (representing the lowest pressure in the range) to 20mA (representing the highest pressure)--is widely used for transmitting data over long distances with minimal signal loss or interference.
The 4-20mA current loop is especially favored in process control and automation systems due to its simplicity, noise immunity, and ability to power the sensor over the same two wires used for signal transmission. For instance, when a pressure of 0 bar is detected, the transmitter sends a 4mA signal, while full-scale pressure corresponds to a 20mA signal. This linear relationship ensures precise monitoring and easy integration with PLCs, SCADA systems, and other industrial controllers.
Applications
  • Mobile hydraulic station monitoring
  • Die casting
  • Various machinery manufacturing
  • Oxygen environment applications
Technical Data
Rated Range 10 16 20 25 40 60 100 160 250 400 600
Gauge Pressure [bar] 10 16 20 25 40 60 100 160 250 400 600
Max. Overvoltage(static) [bar] 20 32 40 50 80 120 200 320 500 800 1200
Bursting Pressure ≥ [bar] 50 80 100 125 200 300 500 800 1400 2000 3000
Vacuum Resistance Unlimited
Product Images
Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor 0 Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor 1 Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor 2
Company Profile
Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor 3 Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor 4 Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor 5 Heavy Load Pressure Transmitter 4 - 20mA Output Welded Stainless Steel Pressure Sensor 6
