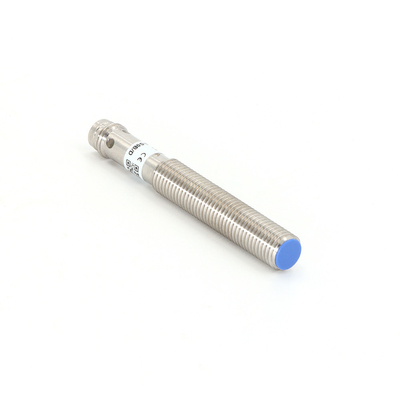

IP67 Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display
  • name
  • name

IP67 Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display

MOQ: 10 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
IS2-M8NC60-S0B/D
Installation Type:
Quasi-flush
Output:
NPN NC
Connection Type:
M8 Connector
Max. Load Current:
100mA
No Load Current:
<10mA（24V）
Voltage Drop:
<2.0v
Protection Grade:
IP67
Ambient Temperature:
-25℃ To +70℃
Sensing Surface Material:
POM
Highlight:

Stainless Steel Inductive Sensors

,

Inductive Sensors NPN NC

Product Description
Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display
Product Overview
This stainless steel inductive proximity sensor provides reliable, non-contact detection of ferrous and non-ferrous metals (including stainless steel) in demanding industrial applications. Its corrosion-resistant 316L stainless steel housing ensures durability in wet, humid, or chemically aggressive environments.
Key Features
  • Quasi-flush installation type
  • 2mm sensing range (Sn)
  • NPN NC output function
  • 10-30VDC supply voltage
  • M8 connector type
  • Stainless steel housing material
  • LED display for status indication
  • IP67 protection grade
Technical Specifications
Installation Type Quasi-flush
Detection Distance 2mm
Working Voltage 10-30VDC
No Load Current <10mA (24V)
Max. Load Current 100mA
Voltage Drop <2.0V
Switching Frequency 3kHz
Protection Grade IP67
Ambient Temperature -25℃ to +70℃
Sensing Surface Material POM
Connection Type M8 Connector
Dimensional Drawing
IP67 Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display 0
Wiring Diagram
IP67 Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display 1
Manufacturing Quality
IP67 Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display 2 IP67 Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display 3 IP67 Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display 4 IP67 Stainless Steel Inductive Sensors NPN NC Quasi Flush 2mm LED Display 5
