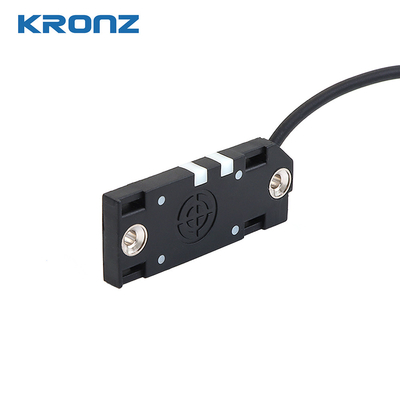

IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing
  • name
  • name

IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing

MOQ: 10 pieces
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 100000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
CN10-Q20NC-P0C2/D
Decription:
Capacitive Sensors
Sensing Range:
10mm (non Flush)
Cunstruction Size:
50.5 X 20 X 5.5mm
Shell:
ABS
Switching Frequency:
100Hz
IP Rating:
IP65
Highlight:

IP65 Capacitive Sensors

,

Capacitive Sensors NPN NC

,

Capacitive Sensors 10mm

Product Description
IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing
Product Attributes
Attribute Value
Description Capacitive Sensors
Sensing Range 10mm (non flush)
Construction Size 50.5 x 20 x 5.5mm
Shell ABS
Switching Frequency 100Hz
IP Rating IP65
Product Description

What size are capacitive sensors? Capacitive sensors are available in a variety of standard sizes to suit different installation requirements and application environments. Common sizes include M8, M12, M18, M30, and M32, which refer to the diameter of the sensor housing in millimeters. These sizes are widely used in industrial automation, packaging, material handling, and process control applications. They provide flexible mounting options and allow for easy integration into existing systems.

Features
  • Sensing range Sn: 10mm (non-flush)
  • Output function: NPN, N.C
  • Supply voltage: 10-30VDC
  • Connection type: 2 meter cable
  • Housing material: ABS
Technical Data
Model NPN N.C
Construction Size 10mm(non-flush)
Switching frequency 100Hz
Operating voltage 10~30VDC(±10%)
Voltage drop ≤2VDC
Operating current ≤200mA
No-load current ≤20mA(24V)
Hysteresis <15%(Sr)
Repeat accuracy <5.0%(Sr)
Protection Reverse-polarity protection, Power-up pulse protection
Indication Permanently on: Switching output active
Operating temperature -10...60°C
IP rating IP65
Housing material ABS
Sensing face material ABS
Connection Cable connection, 2m PVC, 3*0.35mm²
Dimensional Drawing
IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing 0
Company Profile
IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing 1 IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing 2 IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing 3 IP65 Capacitive Sensors Cubic NPN NC 10 - 30VDC Non Flush 10mm Sensing 4
