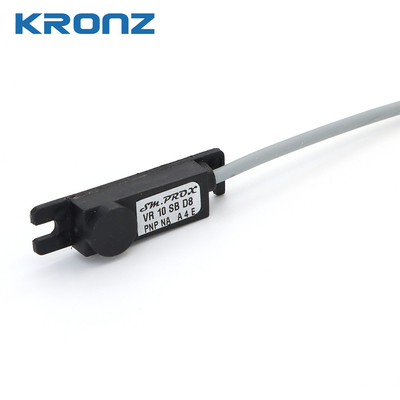

Bracket Version Inductive Sensors Long Distance 8mm Cable Output

MOQ:	1
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

VR-10-S-B-D8

Connection:

Cable 2m, PVC, 3x0.14mm2

Operating Voltage Ub:

10...35 Vdc

Operating Distance Sn:

Voltage Drop Ud:

Max. ≤ 3.5 V

Frequency Of Operating Cycles:

Max. 500 Hz

Housing Material:

Temperature Drift:

<15 %

Electrical Version:

3 Wires DC

Highlight:

Bracket Inductive Sensors

Inductive Sensors 8mm

Product Description

Inductive Sensor PVDF Housing Material Long Distance 8mm Cable Output Bracket Version

Key Specifications

Attribute	Value
Connection	Cable 2m, PVC, 3x0.14mm²
Operating voltage Ub	10...35 Vdc
Operating distance Sn	8 Mm
Voltage drop Ud	Max. ≤ 3.5 V
Frequency of operating cycles	Max. 500 Hz
Housing material	PVDF
Temperature drift	<15 %
Electrical version	3 Wires DC

Technical Parameters

Item No.	VR-10-S-B-D8
Output	PNP normally open
Operating distance Sn	8 mm
Flush mounting	No
Electrical version	3 wires DC
Operating voltage Ub	10...35 Vdc
Output current max. Ie	max. 250mA
Voltage drop Ud	max. < 3.5 V
Permitted residual ripple	max. 10%
No load current Io	tip. 15mA
Frequency of operating cycles	max. 500 Hz

Product Description

This rectangular inductive sensor is designed for reliable detection of metallic objects in industrial environments. Featuring PVDF housing material and an 8mm operating distance, it offers high accuracy and consistent performance with temperature drift below 15%.

Industrial Applications

Machine Automation: Ideal for precise object detection in automated systems with IP67-rated protection.
Material Handling: Ensures accurate detection for smooth conveyor and sorting operations.
Automotive Industry: Reliable component detection on assembly lines with high repeat accuracy.
Packaging Machinery: Fast 500Hz response time for precise control in packaging applications.
Temperature-sensitive Environments: Maintains stable performance with minimal temperature drift.

Ordering Information

CE certified with minimum order quantity of 1. Available in polybag packaging with 5-8 working days delivery time. Payment options include T/T, Western Union, and MoneyGram. Monthly supply capacity: 100,000 units.
