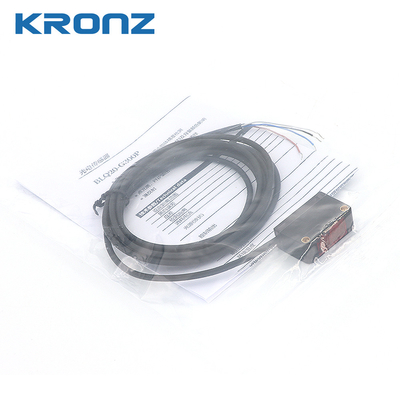

Through Beam Photoelectric Sensors 40mm - 300mm Sensing Distance NPN / PNP Control output

MOQ:	1
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

BLQ20-G300N

Assure Sensing Range Sa:

40-280mm (black Paper:100mm)

Distance Deviation:

Sensing Range Sn:

30-300mm

Current Consumption:

Control Output:

NPN/PNP

Power Supply:

DC 12~24V; Ripple :±10%

Highlight:

Through Beam Photoelectric Sensors

Photoelectric Sensors 40mm

Through Beam Type Sensor NPN

Product Description

Through-beam Photoelectric Sensor 40-300mm Sensing Distance in Industrial Applications

A Photoelectric Sensor is an essential component in industrial automation, designed to detect the presence or absence of objects using a light transmitter and receiver. These sensors play a crucial role in various applications such as warehouse automation and machine guarding, ensuring efficient and safe operations.

Key Specifications

Attribute	Value
Assure Sensing Range Sa	40-280mm (black paper:100mm)
Distance Deviation	＜3%
Sensing Range Sn	30-300mm
Current Consumption	＜3mA
Control output	NPN/PNP
Power supply	DC 12~24V; ripple :±10%

Detailed Technical Specifications

NPN Model	BLQ20-G300N (Pointed beam)
Assure Sensing range Sa	40-300mm (white paper:100mm)40-280mm (black paper:100mm)
White/black deviation	3%(160mm)
Wave length	Laser (655mm)JIS/IEC CLASS 1,FDA CLASS I ＜4.5mW
Residual voltage	＜1V (operating current:＜10mA)＜2V (operating current:＜10~100mA)
Response time	＜0.5ms
Ambient temperature	Operating: -25°C~+55°C; Storage: -40°C+70°C (non-freezing,non-condensing)
Ambient humidity	Operating: 35%~85%RH; Storage: 35~95%RH (non-freezing,non-condensing)
Protection	Power reverse-polarity protected, Short-circuit protected; Mutual Interference Prevention, Output reverse-polarity protected
IP rating	IEC60529: IP64
Housing material	PBT

CMOS Laser Displacement Sensor Technology

The CMOS laser displacement sensor is a high-precision, non-contact measurement device that uses a laser beam and a CMOS (Complementary Metal-Oxide-Semiconductor) image sensor to measure the distance to a target surface. These sensors are widely used in industrial automation and quality control where precise, real-time distance or thickness measurement is required.

Industrial Applications

CMOS laser displacement sensors are used across many industries, including:

Electronics manufacturing
Automotive production
Semiconductor fabrication
Packaging systems

Surface Profile Measurement: Measuring contours, steps, and flatness of materials like PCBs, glass, and metal sheets.
