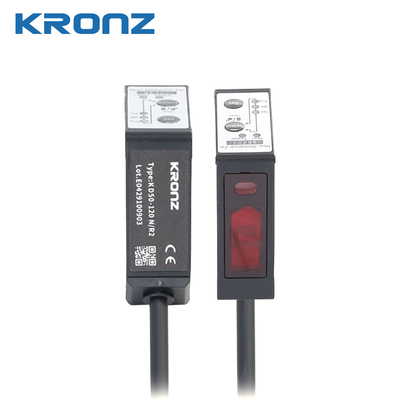

CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm
  • name
  • name

CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm

MOQ: 1
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 10000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
KD50-30
Output Signal:
Switching Output PNP/NPN
Connection Type:
Cable
Detection Range:
30±4mm
Full Scale:
8mm
Operating Temperature:
-10°C - 45°C
Response Time:
High-speed Mode: Max.5ms
Application:
Industrial Automation
IP Rating:
IP67
Highlight:

Laser Photoelectric Sensors

,

Photoelectric Sensors 655mm

,

CMOS Photo Electric Sensor

Product Description
CMOS Laser Photoelectric Sensors Cable Type RedLED Light Diode Wavelength 655nm
Key Specifications
Attribute Value
Output Signal Switching Output PNP/NPN
Connection Type Cable
Detection Range 30±4mm
Full Scale 8mm
Operating Temperature -10°C - 45°C
Response Time High-speed Mode: max.5ms
Application Industrial Automation
IP Rating IP67
Product Overview

The CMOS Laser Photoelectric Sensors feature a high-quality stainless steel housing for durability and protection in harsh industrial environments. These robust sensors provide long-lasting reliability for various automation applications.

What is a CMOS Laser Displacement Photoelectric Sensor?

A CMOS laser displacement photoelectric sensor functions like a mini laser camera that measures object distance without physical contact. It projects a thin laser beam onto a surface and captures the reflection using a CMOS image sensor (similar to digital cameras). By analyzing the laser spot position, it precisely calculates distance or height measurements.

The "photoelectric" designation refers to its operation principle - using light (photo) to trigger electronic (electric) responses.

Technical Specifications
Cable Type 2CH | KD50-30N
Light Source Red Laser diode (wavelength 655nm)
IEC/JIS Rating (FDA Rating) Class 2 (Class Ⅱ)
Sampling Period 500(250mm:750)/1000/1500/2000μs
Spot Size (max.) Near Range: 0.15x0.15mm
Center Range: 0.1x0.1mm
Far Range: 0.15x0.15mm
Linearity Accuracy ±0.1%F.S.
Repeatability High-speed Mode: 4μm
Other Mode: 2μm
Temperature Drift ±0.08%F.S./°C
Indicator Distance indicator: 7 bar LED display
Output indicator: ON state: orange Q1/Q2 indicator light
Product Images
CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 0 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 1 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 2 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 3 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 4 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 5 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 6
Industrial Applications

KRONZ LED Photoelectric Sensors are versatile devices suitable for various industrial scenarios. With sensing distances from 20mm to 300mm and rapid 1ms response times, these sensors are ideal for:

Warehouse Automation

Precision object detection and positioning in automated storage systems

Robotic Applications

Accurate height data for robotic arms in gripping and assembly tasks

Inline Thickness Monitoring

Continuous measurement of sheet metal, plastic film, or foil during production

Quality Inspection

Surface step/flatness measurement on machined parts and weld seam evaluation

CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 7 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 8 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 9 CMOS Laser Photoelectric Sensors Red LED Light Diode Waverlength 655mm 10
