Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range
  • name
  • name

Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range

MOQ: 1
Price: Negotiable
Standard Packaging: Polybag packing
Delivery Period: 5-8 working days
Payment Method: T/T,Western Union,MoneyGram
Supply Capacity: 10000 pieces per month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
KRONZ
Certification
CE
Model Number
BLQ20S-G300P
Sensing Range:
30-300mm
Ip Rating:
IP64
Response Time:
<0.5ms
Distance Deviation:
<3%
Power Supply:
DC 12~24V; Ripple :±10%
Storage Temperature:
-40°C+70°C (non-freezing,non-condensing)
Sensing Method:
Linear Beam
Switching Mode:
Light/dark Switching
Highlight:

Photoelectric Sensors IP64

,

Photoelectric Sensors 300mm

,

Linear Beam Photo Electric Sensor

Product Description
Linear Beam 30-300mm Sensing Range Photoelectric Sensors IP64 Rating Laser 655mm
Key Specifications
Sensing Range 30-300mm
IP Rating IP64
Response Time <0.5ms
Distance Deviation <3%
Power Supply DC 12~24V; ripple: ±10%
Storage Temperature -40°C to +70°C (non-freezing, non-condensing)
Sensing Method Linear beam
Switching Mode Light/dark switching
Product Overview
The KRONZ Photoelectric Sensors are precision industrial automation solutions featuring threaded mounting for secure installation. With IP64 protection against dust and water ingress, these sensors deliver reliable performance in demanding environments.
CMOS Laser Displacement Technology
This sensor uses advanced CMOS laser displacement technology to measure position, height, or thickness without physical contact. The CMOS image sensor captures reflected laser light with micron-level accuracy, enabling precise non-contact measurements.
Technical Details
Model (NPN) BLQ20-G300N (Pointed beam)
Assured Sensing Range 40-300mm (white paper), 40-280mm (black paper)
White/Black Deviation 3% (160mm)
Current Consumption <3mA
Wavelength Laser (655mm)
Control Output Open collector; NPN/PNP
Ambient Temperature Operating: -25°C to +55°C

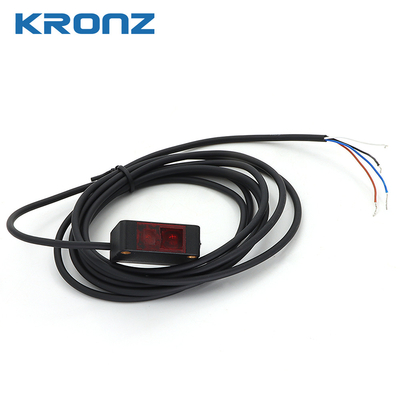

Product Images
Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range 0 Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range 1 Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range 2 Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range 3
Industrial Applications
These photoelectric sensors are ideal for packaging and logistics equipment, including:
  • Carton or object height detection in conveyor systems
  • Labeling and printing height calibration
  • Package sorting and classification
  • Precision measurement in manufacturing processes
Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range 4 Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range 5 Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range 6 Linear Beam Photoelectric Sensors IP64 Rating Laser 655mm 30 - 300mm Sensing Range 7
