12 - 24V DC Photoelectric Sensors Diffuse Reflection 40 - 300mm Sensing Range

MOQ:	1
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

BLQ20-G300P

Operating Temperature:

-25°C To 55°C

Light Source:

Infrared LED

Housing Material:

Sensing Distance:

30-300mm

Response Time:

<0.5ms

Wave Length:

Laser (655mm)

Storage Temperature:

-40°C To 70°C

Residual Voltage:

＜1V (operating Current:＜10mA)

Highlight:

24V DC Photoelectric Sensors

Photoelectric Sensors Diffuse Reflection

Photoelectric Sensor 300mm

Product Description

12-24V DC Photoelectric Sensors Diffuse Reflection 40-300mm Sensing Range for White Paper

Product Specifications

Attribute	Value
Operating Temperature	-25°C To 55°C
Light Source	Infrared LED
Housing Material	PBT
Sensing Distance	30-300mm
Response Time	<0.5ms
Wave Length	Laser (655mm)
Storage Temperature	-40°C To 70°C
Residual Voltage	<1V (operating current:<10mA)

Technical Details

NPN	BLQ20-G300N (Pointed beam)
Assure Sensing range Sa	40-300mm (white paper:100mm)40-280mm (black paper:100mm)
White/black deviation	3%(160mm)
Distance deviation	<3%
Sensing range Sn	30-300mm
Current consumption	<3mA
Wave length	Laser (655mm)JIS/IEC CLASS 1,FDA CLASS I <4.5mW
Control output	open collector; NPN/PNP;Switching mode: Light/dark switching
IP rating	IEC60529: IP64
Housing material	PBT

Product Overview

Photoelectric sensors detect the presence or absence of objects using a light transmitter and receiver. Our infrared light sensors utilize reliable infrared technology for precise object detection in industrial automation applications.

These position-sensing devices operate on light transmission principles, consisting of an emitter that produces a light beam (typically infrared) and a receiver that detects changes in light intensity. When an object interrupts or reflects the beam, the sensor triggers an electrical signal for automation control.

Industrial Applications

Our CE certified photoelectric sensors are versatile solutions for various industrial automation needs:

Machine activation systems
Conveyor belt control
Part counting on production lines
Object detection in manufacturing processes
Quality control systems

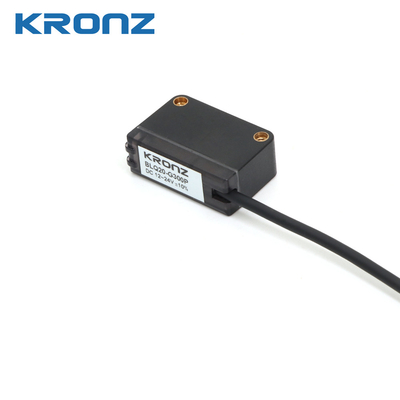

Product Images
