PMMA Lens Photoelectric Sensors For Industrial Automation Manufacturing Processes

MOQ:	1
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	10000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

KD50-120N

Linearity Accuracy:

±0.1%F.S.

Connection Type:

Cable

Spot Size (max.) Far Range:

0.5x0.8mm

Factory Setting:

500μs（250mm：750μs）

Light Source:

Red Laser Diode

Operating Temperature:

-10~45°C

Shock Resistance:

50G（500m/s²）

Spot Size (max.) Near Range:

1.2x1.8mm

Highlight:

PMMA Lens Photoelectric Sensors

Industrial Automation Photoelectric Sensors

Product Description

PMMA Lens Photoelectric Sensors for Storage Humidity 35-95%RH Performance and Efficiency

Key Specifications

Linearity Accuracy

±0.1%F.S.

Connection Type

Cable

Spot Size (max.) Far Range

0.5x0.8mm

Factory Setting

500μs(250mm:750μs)

Light Source

Red Laser Diode

Operating Temperature

-10~45°C

Shock Resistance

50G(500m/s²)

Spot Size (max.) Near Range

1.2x1.8mm

Product Overview

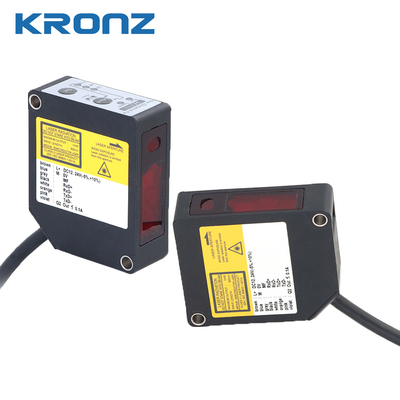

The KRONZ photoelectric sensor is a versatile and reliable short-range optical sensor designed for industrial applications. Featuring a rugged PBT housing and PMMA lens, it ensures durability, optical clarity, and precise sensing accuracy.

CMOS Laser Displacement Sensor Operation

Laser Emission: The sensor emits a laser beam onto the target object's surface.
Reflection: The reflected light is captured by the CMOS sensor using triangulation principles.
Displacement Calculation: The position change of the reflected light spot enables precise distance measurement to the object.

Technical Specifications

Cable Type

2 channels (KD50-120N series)

Output Signal

Switching Output: NPN (-N)

Detection Range

120±60 mm

Full Scale (F.S.)

120 mm

Repeatability

High-speed mode: 45 microns
Other modes: 30 microns

Storage Conditions

-20~60°C/35~95%RH (no condensation)

Impact Resistance

50G (500 m/s²)

Vibration Resistance

10~55Hz, 1.5mm amplitude (X,Y,Z directions)

Applications

KRONZ photoelectric sensors are ideal for industrial automation, manufacturing processes, and robotics applications. Their reliable performance and advanced features make them suitable for diverse industrial scenarios.
