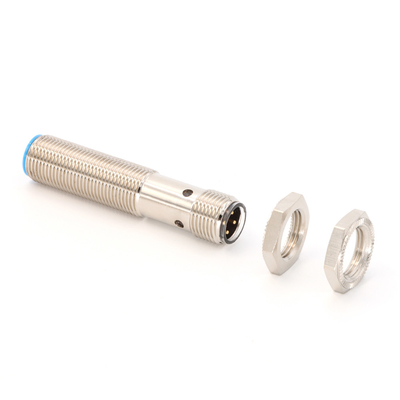

U12 Ultrasonic Distance Sensors 20M - 200M Detection Range NPN PNP Output

MOQ:	5 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U12-D200N(P)1T-R00A

Features:

Easy To Instal

Series:

U12 Serial

Detection Range:

20-200mm

Response Time:

Switching Hysteresis:

Switching Frequency:

Repeatability:

±0.15% F.S.

Supply Voltage:

10-30V DC

Highlight:

Ultrasonic Distance Sensors 200M

Ultrasonic Distance Sensors PNP

Ultrasonic Distance Sensors NPN

Product Description

U12 Ultrasonic Distance Sensors 20M - 200M Detection Range NPN PNP Output

Product Attributes

Attribute	Value
Series	U12 Serial
Features	Easy to install
Detection Range	20-200mm
Response time	22mm
Switching hysteresis	1mm
Switching frequency	45hz
Repeatability	±0.15% F.S.
Supply voltage	10-30V DC

Product Description

Ultrasonic sensors offer several advantages: they are non-contact, resistant to dust and moisture, and capable of detecting objects over a wide range of distances. These sensors can work in both indoor and outdoor environments and are effective even in low visibility conditions. Thanks to their durability and accuracy, ultrasonic sensors are a reliable solution for modern sensing applications.

Main Features:

M12 installation threaded sleeve, the shortest full length is only 57mm
Small blind zone, small sound cone, suitable for close-range fine detection

Basic Features:

1 pc npn or pnp switching output
Support digital RS485, modbus-rut standard protocol communication
Analog voltage output 0-10V or analog current output 4-20 mA
Realize detection distance learning function through white lines
Temperature compensation
Standard operating voltage DC 10-30V

Technical Parameters

Model	U12-D200N(P)1T-R00A
Detection range	20-200mm
Blind zone	0-20mm
Resolution	0.1mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	22ms
Switching hysteresis	1mm
Switching frequency	45Hz
Initialization time	< 500ms
Supply voltage	10-30V DC,reverse-polarity protection
Red LED	no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED	object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection	200mA,Red LED and Green LED flashing at the same time
Load impedance	I/ < 300 Ohm,U/ > 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nickel-plated,plastic fittings,glass epoxy resin.
Enclosure rating	IP67
Connection type	4pin, M12 connector
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	20g
Output type	N1: 1 npn switching output NO/NC P1: 1 pnp switching output NO/NC

Dimensional Drawing
