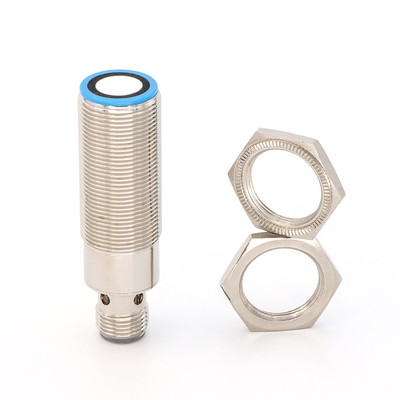

32ms Industrial Ultrasonic Sensor Switching Output 50 - 500mm 31Hz

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U18-D500N(P)32T-R00A

Detection Range:

50-500mm

Resolution:

0.15mm

Repeatability:

±0.15% F.S.

Supply Voltage:

10-30V DC,reverse-polarity Protection

Switching Frequency:

Red LED:

No Object Detected:Lights Up, Teaching-in When No Object Detected:Flashes

Load Impedance:

I/ ＜ 300 Ohm,U/ ＞ 1k Ohm

No-load Current:

≤30mA

Highlight:

32ms Industrial Ultrasonic Sensor

Industrial Ultrasonic Sensor 31Hz

Product Description

32ms Industrial Ultrasonic Sensors Switching Output 50-500mm 5pin M12 Connector

Product Attributes

Attribute	Value
Detection range	50-500mm
Resolution	0.15mm
Repeatability	±0.15% F.S.
Supply voltage	10-30V DC, reverse-polarity protection
Switching frequency	31Hz
Red LED	no object detected: Lights up, teaching-in when no object detected: Flashes
Load impedance	I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current	≤30mA

Product Description

Ultrasonic Technology: These sensors operate on the principle of echolocation, similar to how bats navigate. The transducer emits ultrasonic pulses that reflect off objects, with the returning echo used to calculate precise distances. This contactless sensing method is ideal for environments where physical touch isn't feasible.

Main Features

M18 installation threaded sleeve for easy mounting
Simple installation process

Basic Features

1 NPN or PNP switching output
Supports digital RS485, Modbus-RTU standard protocol communication
Analog voltage output (0-10V) or analog current output (4-20 mA)
Detection distance learning function via gray lines
Built-in temperature compensation
Standard operating voltage DC 10-30V

Technical Parameters

Parameter	Specification
Model	U18-D500N(P)32T-R00A
Detection range	50-500mm
Blind zone	0-50mm
Resolution	0.15mm
Repeatability	±0.15% F.S.
Accuracy	±1% (with built-in temperature drift compensation)
Response time	32ms
Switching hysteresis	2mm
Switching frequency	31Hz
Initialization time	＜ 500ms
Supply voltage	10-30V DC, reverse-polarity protection
Red LED	no object detected: Lights up, teaching-in: Flashes
Green LED	object detected: Lights up, teaching-in: Flashes
Overcurrent protection	200mA (Red and Green LEDs flash simultaneously)
Load impedance	I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current	≤30mA
Input type	teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~ +70℃ (248~343K)
Storage temperature	-40℃ ~ +85℃ (233~358K)
Weight	35g
Output type	N32: 2 NPN switching output NO/NC P32: 2 PNP switching output NO/NC

Dimensional Drawing
