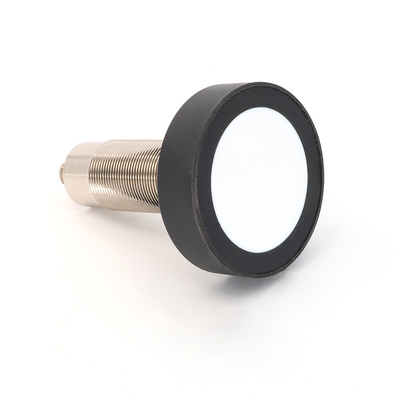

U30 Industrial Ultrasonic Sensors NPN 350mm - 6000mm 5 Pin M12 Connector

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U30-D6000N(P)1T-R00A

Detection Range:

350-6000mm

Blind Zone:

0-350mm

Repeatability:

±0.15%F.S.

Response Time:

232ms

Initialization Time:

＜ 500ms

Supply Voltage:

10-30V DC,reverse-polarity Protection

Load Impedance:

I/ ＜ 300 Ohm,U/ ＞ 1k Ohm

Weight:

Highlight:

Industrial Ultrasonic Sensors NPN

Industrial Ultrasonic Sensors 350mm

5 Pin Ultrasonic Sensor M12

Product Description

U30 Industrial Ultrasonic Sensors NPN 350mm - 6000mm 5 Pin M12 Connector

Key Specifications

Attribute	Value
Detection range	350-6000mm
Blind zone	0-350mm
Repeatability	±0.15%F.S.
Response time	232ms
Initialization time	＜ 500ms
Supply voltage	10-30V DC, reverse-polarity protection
Load impedance	I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
Weight	185g

Product Features

Main Feature:

▶ Full Metal M30 installation threaded sleeve
▶ Used in harsh environments

Basic Feature:

▶ 1 pc npn switching output
▶ Support digital RS485, modbus-rut standard protocol communication
▶ Implementing detection distance learning function through gray lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V

Technical Parameters

Model	U30-D6000N(P)1T-R00A
Detection range	350-6000mm
Blind zone	0-350mm
Resolution	0.17-2.5mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	232ms
Switching hysteresis	±5mm
Switching frequency	4Hz
Initialization time	< 500ms
Supply voltage	10-30V DC, reverse-polarity protection
Red LED	no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED	object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection	200mA, Red LED and Green LED flashing at the same time
Load impedance	I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	185g
Output type	N1: 1 npn switching output, NO/NC

Dimensional Drawing
