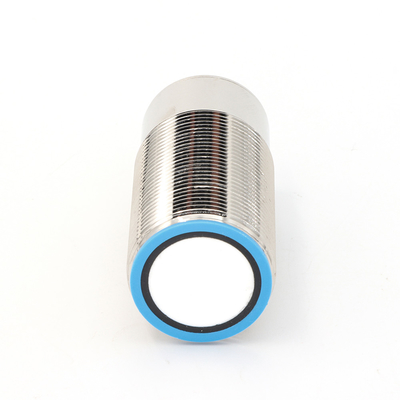

M12 Connector NPN Ultrasonic Sensor IP67 Detection Range 100 - 2000mm

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U30-D2000N(P)1T-R00A

Detection Range:

100-2000mm

Blind Zone:

0-100mm

Repeatability:

±0.15%F.S.

Response Time:

Initialization Time:

＜ 500ms

Supply Voltage:

10-30V DC,reverse-polarity Protection

Load Impedance:

I/ ＜ 300 Ohm,U/ ＞ 1k Ohm

No-load Current:

≤30mA

Highlight:

M12 NPN Ultrasonic Sensor

NPN Ultrasonic Sensor IP67

Ultrasonic Detection Sensor 2000mm

Product Description

M12 Connector NPN Ultrasonic Sensor IP67 Detection Range 100 - 2000mm

Product Attributes

Attribute	Value
Detection range	100-2000mm
Blind zone	0-100mm
Repeatability	±0.15%F.S.
Response time	82ms
Initialization time	＜ 500ms
Supply voltage	10-30V DC, reverse-polarity protection
Load impedance	I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current	≤30mA

Product Description

What is an ultrasonic sensor used for?

An ultrasonic sensor is a type of device that determines the distance to a target object by emitting high-frequency sound waves and analyzing the time it takes for the echo to return. These sensors are widely used in various industries for distance measurement, object detection, and automation. By converting electrical signals into ultrasonic waves and vice versa, the sensor provides accurate and real-time feedback on an object's proximity.

Main Features

Full Metal M30 installation threaded sleeve
Used in harsh environments

Basic Features

1 pc npn switching output
Support digital RS485, modbus-rut standard protocol communication
Implementing detection distance learning function through gray lines
Temperature compensation
Standard operating voltage DC 10-30V

Technical Parameters

Model	U30-D2000N(P)1T-R00A
Detection range	100-2000mm
Blind zone	0-100mm
Resolution	0.17mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	82ms
Switching hysteresis	±2mm
Switching frequency	10Hz
Initialization time	< 500ms
Supply voltage	10-30V DC, reverse-polarity protection
Red LED	no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED	object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection	200mA, Red LED and Green LED flashing at the same time
Load impedance	I/ < 300 Ohm, U/ > 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~ +70℃(248~343K)
Storage temperature	-40℃ ~ +85℃(233~358K)
Weight	105g
Output type	N1: 1 npn switching output, NO/NC

Dimensional Drawing
