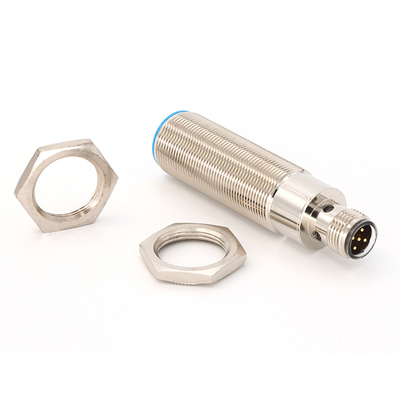

IP67 Industrial Ultrasonic Sensors PNP NPN Sensor 60 - 1000mm Detection Range

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U18-D1000N(P)2T-R00A

Product Name:

Ultrasonic Distance Sensors

Connection Type:

5pin, M12 Connector

Material:

Copper Nikel-plated,plastic Fittings,glass Epoxy Resin.

Supply Voltage:

10-30V DC

Input Type:

Teach-in And Synchronization

Blind Zone:

0-60mm

Ambient Temperature:

-25℃ ~+70℃（248~343K）

Storage Temperature:

-40℃ ~+85℃（233~358K）

Highlight:

Industrial Ultrasonic Sensors 60mm

Industrial Ultrasonic Sensors 1000mm

Ultrasonic PNP NPN Sensor

Product Description

IP67 Industrial Ultrasonic Sensors PNP NPN Sensor 60 - 1000mm Detection Range

Product Attributes

Attribute	Value
Product Name	Ultrasonic Distance Sensors
Connection type	5pin, M12 connector
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Supply Voltage	10-30V DC
Input type	Teach-in and synchronization
Blind zone	0-60mm
Ambient temperature	-25℃ ~ +70℃ (248~343K)
Storage temperature	-40℃ ~ +85℃ (233~358K)

Product Description

Ultrasonic sensors are used across a wide range of industries for tasks like obstacle detection in robotics, level monitoring in tanks, and proximity sensing in automotive parking systems. Their ability to function accurately regardless of color, transparency, or surface texture makes them more versatile than optical sensors. They are also commonly found in manufacturing automation, where precision and reliability are critical.

Main Features

M18 installation threaded sleeve
Easy to install

Basic Features

1 pc NPN or PNP switching output
Support digital RS485, Modbus-RTU standard protocol communication
Analog voltage output 0-10V or analog current output 4-20 mA
Implementing detection distance learning function through gray lines
Temperature compensation
Standard operating voltage DC 10-30V

Technical Parameters

Model	U18-D1000N(P)2T-R00A
Detection range	60-1000mm
Blind zone	0-60mm
Resolution	0.17mm
Repeatability	±0.15%F.S.
Accuracy	±1% (built-in temperature drift compensation)
Response time	52ms
Switching hysteresis	2mm
Switching frequency	19Hz
Initialization time	< 500ms
Supply voltage	10-30V DC, reverse-polarity protection
Red LED	No object detected: Lights up, teaching-in when no object detected: Flashes
Green LED	Object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection	200mA, Red LED and Green LED flashing at the same time
Load impedance	I/ < 300 Ohm, U/ > 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~ +70℃ (248~343K)
Storage temperature	-40℃ ~ +85℃ (233~358K)
Weight	38g
Output type	N2: 1 NPN switching output NO/NC P2: 1 PNP switching output NO/NC

Dimensional Drawing
