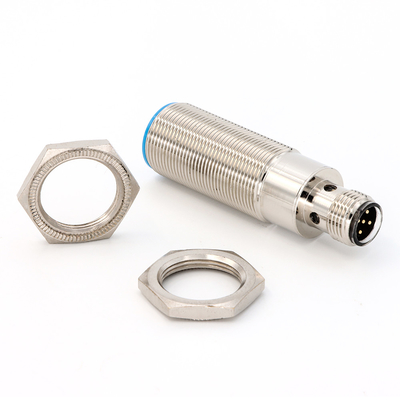

Red LED Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC IP67

Products

Photoelectric Sensors

sales02@kronz.cn

+8618924160375

Contact Now

Red LED Industrial Ultrasonic Sensors NPN PNP Switching Output NO/NC IP67

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T, Western Union, MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U18-D300N(P)2T-R00A

Detection Range:

30-300mm

Blind Zone:

0-30mm

Repeatability:

±0.15% F.S.

Response Time:

Switching Hysteresis:

Switching Frequency:

Highlight:

Red LED Industrial Ultrasonic Sensors NPN

Industrial Ultrasonic Sensors IP67

Industrial Ultrasonic Sensors PNP

Product Description

Ultrasonic Sensor NPN PNP Switching Output NO/NC 30-300mm Red LED IP67

Product Description

Main Feature:
▶ M18 installation threaded sleeve
▶ Easy to instal

Basic Feature:
▶ 1 pc npn or pnp switching output
▶ Support digital RS485, modbus-rut standard protocol communication
▶ Analog voltage output 0-10V or analog current output 4-20 mA
▶ Implementing detection distance learning function through gray lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V

Model	U18-D300N(P)2T-R00A
Dection range	30-300mm
Blind zone	0-30mm
Resolution	0.1mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	22ms
Switching hysteresis	2mm
Switching frequency	45Hz
Initialization time	＜ 500ms
Supply voltage	10-30V DC,reverse-polarity protection
Red LED	no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED	object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection	200mA,Red LED and Green LED flashing at the same time
Load impedance	I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current	≤30mA
Input type	teach-in and synchronization
Material	Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	35g
Output type	N2: 1 npn switching output NO/NC
Output type	P2: 1 pnp switching output NO/NC
Dimensional drawing
