U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U18-D300N(P)32T-R00A

Detection Range:

30-300mm

Resolution:

0.1mm

Switching Hysteresis:

Switching Frequency:

Supply Voltage:

10-30VDC

Load Impedance:

I/ ＜ 300 Ohm,U/ ＞ 1k Ohm

Highlight:

Ultrasonic Sensor NPN 45Hz

U18 Ultrasonic Sensor PNP

U18 Ultrasonic Sensor PNP 200mA

Product Description

U18 Ultrasonic Sensor PNP NPN 45Hz 200mA 30-300mm Distance Sensors

Product Overview

A compact, industrial-grade proximity sensor with dual NPN/PNP outputs and 30-300mm adjustable detection range. Features 45Hz response speed and IP67 protection for reliable operation in harsh environments.

Key Features

Precision Distance Sensing

30-300mm Detection Range - Adjustable via potentiometer

±2% Measurement Accuracy - Reliable object positioning

45Hz Response Frequency - Fast detection for moving targets

Flexible Output Options

PNP (NO/NC) + NPN (NO/NC) - Configurable for any PLC input

200mA Sink/Source Current - Directly drives relays or small loads

Industrial Durability

IP67 Rated Housing - Dustproof & waterproof for harsh environments

-25°C to +70°C Operation - Stable performance in extreme conditions

ABS Plastic + Metal Thread - Vibration & impact resistant

Easy Installation & Adjustment

M18 Threaded Barrel (54mm Length) - Standard industrial mounting

LED Status Indicator - Power/Output visual feedback

Teach-in Function - Quick calibration via button

Technical Specifications

Attribute	Value
Model	U18-D300N(P)32T-R00A
Detection range	30-300mm
Blind zone	0-30mm
Resolution	0.1mm
Repeatability	±0.15%F.S.
Accuracy	±1% (built-in temperature drift compensation)
Response time	22ms
Switching hysteresis	2mm
Switching frequency	45Hz
Supply voltage	10-30V DC, reverse-polarity protection
Load impedance	I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
Enclosure rating	IP67
Ambient temperature	-25℃ ~ +70℃
Weight	35g

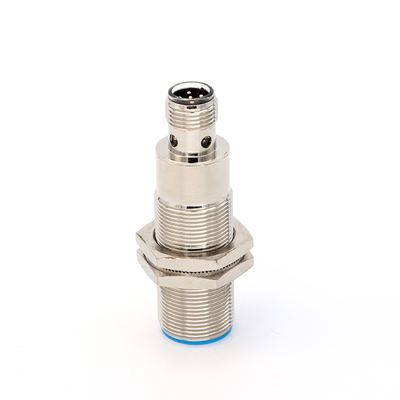

Product Images

Dimensional Drawing

Company Profile
