5 Pin M12 Connector Industrial Ultrasonic Sensor 30-300mm Detection Range

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

KRONZ

Certification

Model Number

U18-D300UIT-R00A

Detection Range:

30-300mm

Blind Zone:

0-30mm

Resolution:

0.1mm

Response Time:

No-load Current:

≤30mA

Supply Voltage:

10-30V DC

Enclosure Rating:

Connection Type:

5pin, M12 Connector

Highlight:

M12 Connector Industrial Ultrasonic Sensor

5 Pin Industrial Ultrasonic Sensor

5 Pin M12 Connector Ultrasonic Sensor

Product Description

5 Pin M12 Connector Industrial Ultrasonic Sensor 30-300mm Detection Range

Product Attributes

Attribute	Value
Detection range	30-300mm
Blind zone	0-30mm
Resolution	0.1mm
Response time	22ms
No-load current	≤30mA
Supply voltage	10-30V DC
Enclosure rating	IP67
Connection type	5pin, M12 connector

Product Description

Ultrasonic Sensor Analog Current Voltage Output 30-300mm 5 Pin M12 Connector

A compact, industrial-grade proximity sensor with dual NPN/PNP outputs and 30-300mm adjustable detection range. Features 45Hz response speed and IP67 protection for reliable operation in harsh environments.

Features:

Precise Short-Range Detection - Adjustable 30-300mm sensing distance with ± 2% accuracy
5-Pin M12 Connector - Quick-disconnect, vibration-resistant industrial interface
Dual Output Options - Configurable NPN/PNP (NO+NC) for PLC compatibility
High-Speed Response - 45Hz refresh rate for fast-moving object detection
Industrial Durability - IP67-rated housing (dust/waterproof) with -25 °C to +70°C operating range
Easy Installation - Standard M18 threaded barrel (54mm length) with teach-in button for quick calibration
Status LED - Visual power/output indication

Technical Parameters

Model	U18-D300UIT-R00A
Detection range	30-300mm
Blind zone	0-30mm
Resolution	0.1mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	22ms
Initialization time	< 500ms
Supply voltage	10-30V DC,reverse-polarity protection
Red LED	no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED	object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection	200mA,Red LED and Green LED flashing at the same time
Load impedance	I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current	≤30mA
Input type	Teach-in and synchronization
Material	Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	35g
Output type	UI: 1 analog voltage output 0-10V + 1 analog current output 4-20mA, up/down

Dimensional Drawing

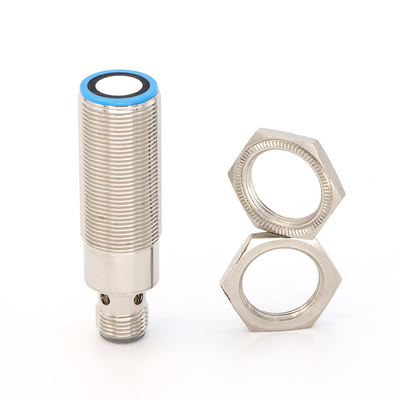

Product Images
