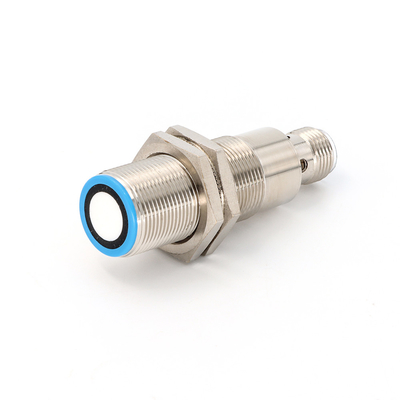

U18 Industrial Ultrasonic Sensors 50-500mm Detection Range 0-50mm Blind Zone

MOQ:	10 pieces
Price:	Negotiable
Standard Packaging:	Polybag packing
Delivery Period:	5-8 working days
Payment Method:	T/T,Western Union,MoneyGram
Supply Capacity:	100000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin

Guangdong, China

Brand Name

Kronz

Certification

Model Number

U18-D500IT-R00A

Series:

U18 Serial

Detection Range:

50-500mm

Blind Zone:

0-50mm

Resolution:

0.15mm

Response Time:

Initialization Time:

<500ms

Supply Voltage:

10-30V DC,reverse-polarity Protection

Load Impedance:

I/ ＜ 300 Ohm,U/ ＞ 1k Ohm

Highlight:

Industrial Ultrasonic Sensors U18

500mm Detection Industrial Ultrasonic Sensors

50mm Blind Zone Industrial Ultrasonic Sensors

Product Description

U18 Industrial Ultrasonic Sensors 50-500mm Detection Range 0-50mm Blind Zone

Product Attributes

Attribute	Value
Series	U18 Serial
Detection Range	50-500mm
Blind Zone	0-50mm
Resolution	0.15mm
Response Time	32ms
Initialization Time	<500ms
Supply Voltage	10-30V DC, reverse-polarity protection
Load Impedance	I/ < 300 Ohm, U/ > 1k Ohm

Product Description

Ultrasonic Sensor U18 Analog Current Output 4-20mA Up/down 50-500mm Detection Range

Ultrasonic sensor U118-D500IT-R00A has detection range 50-500mm, it supply voltage 10-30VDC, reverse-polarity protection. Analog current output 4-20mA up/down. Ultrasonic sensors use ultrasonic waves for things like detecting the distance to an object, detecting the presence or absence of objects, and detecting the movement of objects.

Features:

Wide Detection Range: 50-500mm adjustable sensing distance
Minimal Blind Zone: Only 0-50mm for close-range detection
High Accuracy: ±1% measurement precision
Industrial Durability: IP67-rated housing (dustproof/waterproof)
Flexible Outputs: NPN/PNP switch outputs (configurable NO/NC)
Fast Response: 25Hz update rate for dynamic applications
Robust Construction: M18 threaded metal barrel with ABS housing
Wide Temperature Range: -25°C to +70°C operation

Technical Parameters

Model	U18-D500IT-R00A
Detection range	50-500mm
Blind zone	0-50mm
Resolution	0.15mm
Repeatability	±0.15%F.S.
Accuracy	±1%(built-in temperature drift compensation)
Response time	32ms
Initialization time	< 500ms
Supply voltage	10-30V DC, reverse-polarity protected
Red LED	no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED	object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection	200mA, Red LED and Green LED flashing at the same time
Load impedance	I/ < 300 Ohm, U/ > 1k Ohm
No-load current	≤30mA
Input type	teach-in and synchronization
Material	Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating	IP67
Connection type	5pin, M12 connector
Ambient temperature	-25℃ ~ +70℃(248~343K)
Storage temperature	-40℃ ~ +85℃(233~358K)
Weight	35g
Output type	I: 1 analog current output 4-20mA Up/down
